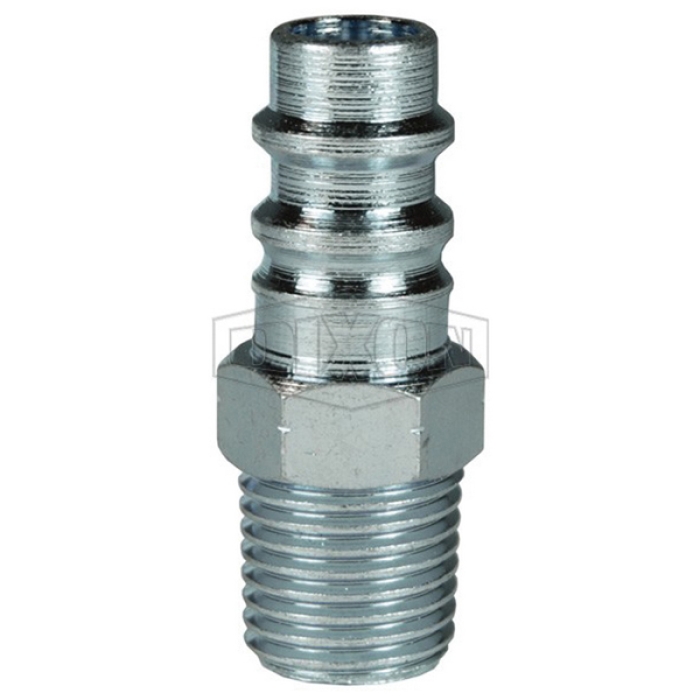

Dixon® Pneumatic Industrial Interchange Plug, CJ Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: BSPT, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 1/4-19, Hex Size: 9/16 in, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 0.65 in OD x 1.48 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Gender 2 | : | Male |
| Connection Size 2 | : | 1/4 in |
| Thread Size 2 | : | 1/4-19 |
| Hex Size | : | 9/16 in |
| Material | : | Steel |
| Finish | : | Trivalent Chrome-Plated |
| Dimensions | : | 0.65 in OD x 1.48 in L |
| Series | : | CJ |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 1/4 in BSPT |
| Connection Type 2 | : | BSPT |
- Machined components are manufactured using solid steel bar stock
- Steel componentry is plated using RoHS compliant trivalent chrome
- European high-flow interchange
- Interchanges with CEJN 320, Coilhouse Megaflow, Rectus 25KA/26KA and other like designs
Safety Notes:
- It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
- Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
- To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
