Dixon® DC2044
Send Print
  1. pin-int

Dixon® DC2044

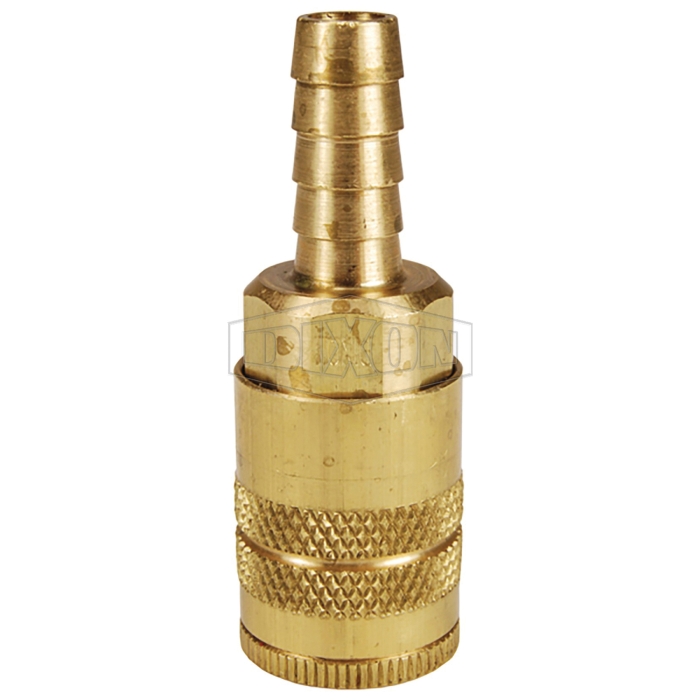

Dixon® DC2044 Brass Air Chief Semi-Automatic Industrial Interchange Coupler, 1/4 in Quick Disconnect x 3/8 in Hose Barb

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN DC2044
  • MPN: DC2044
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Air Chief Semi-Automatic Industrial Interchange Coupler, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: Hose Barb, Connection Size 2: 3/8 in, 300 psi, Brass, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Connection Size 2      :      3/8 in
Pressure Rating      :      300 psi
Material      :      Brass
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/4 in
Connection 2      :      3/8 in Hose Barb
Connection Type 2      :      Hose Barb
  • Semi automatic- pull sleeve to connect
  • Couplers shut-off when disconnected

Safety Notes:

  • For air service only.
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.
