Dixon® DC28

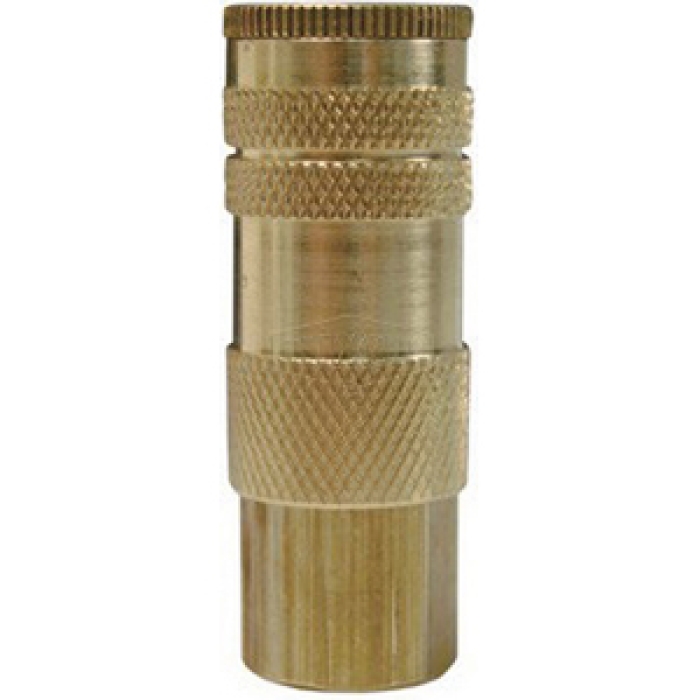

Dixon® DC28 Brass Air Chief Lincoln®Interchange Coupler, 1/4 in Quick Disconnect x 1/4 in FNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN DC28
  • MPN: DC28
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Air Chief Lincoln Interchange Coupler, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, 300 psi, Brass, Dimensions: 7/8 in Dia x 2-3/8 in L

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Gender 2      :      Female
Connection Size 2      :      1/4 in
Pressure Rating      :      300 psi
Material      :      Brass
Dimensions      :      7/8 in Dia x 2-3/8 in L
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPT
  • Semi automatic- pull sleeve to connect
  • Couplers shut-off when disconnected
  • Interchangeable with Lincoln®interchange's long stem Series

Safety Notes:

  • Pressure rating given at ambient temperature 70 deg F.
