Dixon® DC644
Send Print
  1. pin-int

Dixon® DC644

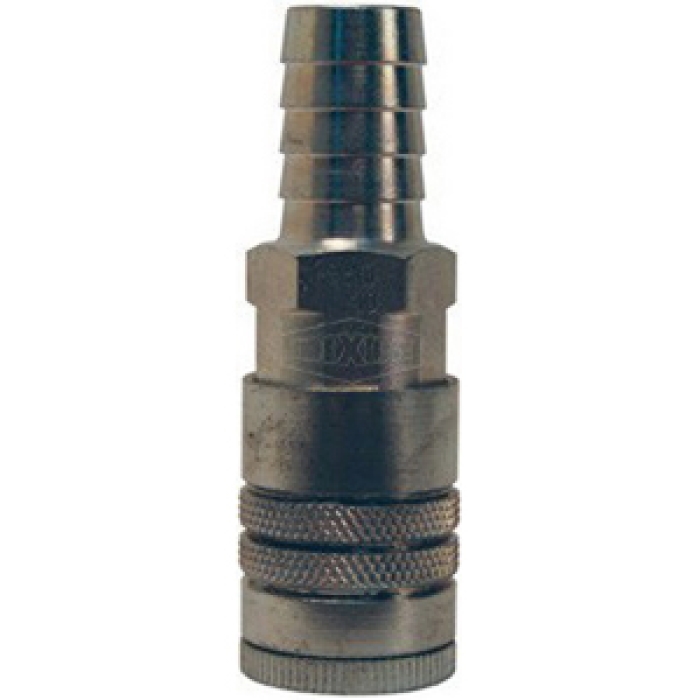

Dixon® DC644 Steel Air Chief Automotive Standard Coupler, 3/8 in Quick Disconnect x 3/8 in Hose Barb

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN DC644
  • MPN: DC644
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Air Chief Automotive Standard Coupler, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: Hose Barb, Connection Size 2: 3/8 in, 300 psi, Steel, Dimensions: 2-13/16 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Connection Size 2      :      3/8 in
Pressure Rating      :      300 psi
Material      :      Steel
Dimensions      :      2-13/16 in L
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in Hose Barb
Connection Type 2      :      Hose Barb
  • Semi automatic- pull sleeve to connect
  • Couplers shut-off when disconnected
  • Air chief automotive quick-connect couplers will interchange with the popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton and Truflate

Safety Notes:

  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination.
  • Consult hose manufacturer's catalog for hose end connection ratings.
  • If in doubt, test under controlled conditions for suitability to application.
  • Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.
