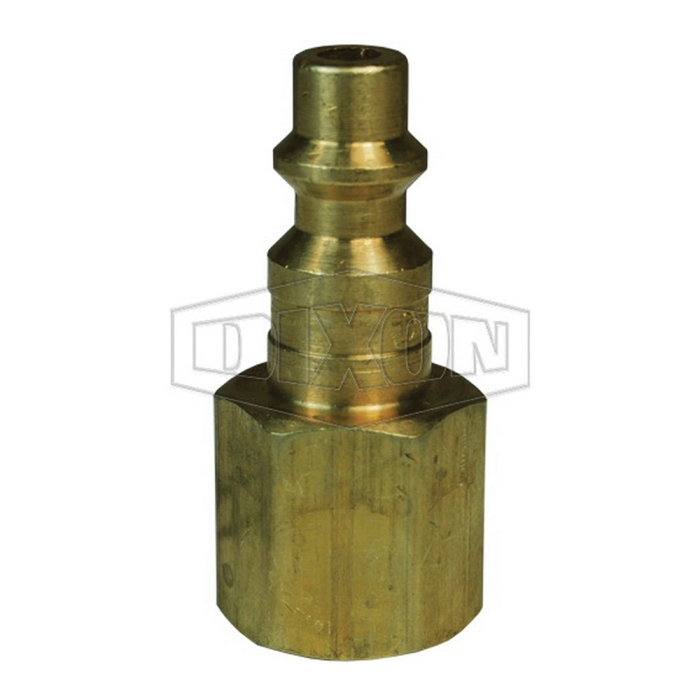

Dixon® Pneumatic Industrial Interchange Plug, DF Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1 in, 500 psi, Brass, Dimensions: 1.16 in Dia x 2.27 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/2 in |
| Thread Size 2 | : | 1/2-14 |
| Hex Size | : | 1 in |
| Pressure Rating | : | 500 psi |
| Material | : | Brass |
| Dimensions | : | 1.16 in Dia x 2.27 in L |
| Series | : | DF |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/2 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1/2 in |
| Connection 2 | : | 1/2 in NPT |
| Connection Type 2 | : | NPTF |
- Machined components are manufactured using solid bar stock
- Foster 3, 4, 5 and 6 Series
- Parker® 30 Series automatic interchange and Parker® 20 Series manual interchange
- Hansen 3000, 4000, 5000 and 6000 and Hansen 1000, 400 and 500
Safety Notes:
- It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
- Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
- To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
