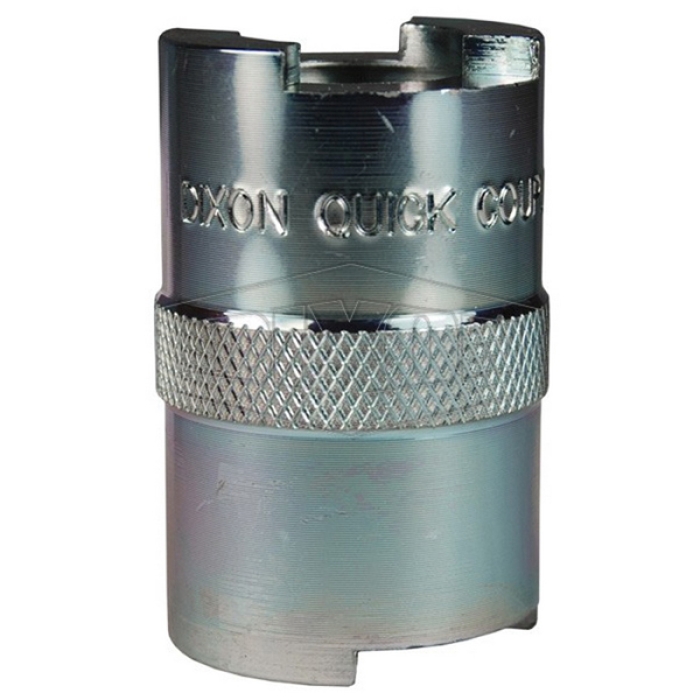

Dixon® Dix-Lock™ Interchange Gender Change Union, N Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: Quick Disconnect, Gender 2: Female, Connection Size 2: 1/2 in, Steel, Dimensions: 1.33 in OD x 3.26 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Union |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/2 in |
| Material | : | Steel |
| Dimensions | : | 1.33 in OD x 3.26 in L |
| Series | : | N |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/2 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1/2 in |
| Connection 2 | : | 1/2 in Quick Disconnect |
| Connection Type 2 | : | Quick Disconnect |
- Machined components are manufactured using solid bar stock
- Bowes interchange Bayonet style, interchangeable with Bowes 51000 series, national Series 'B', MacDonald quick-action, Campbell single-lock
- Conforms to MIL-C-3486 and A-A-50431A standards
Safety Notes:
- It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
- Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
- To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
