Dixon® N4S6-LS-WF
Send Print
  1. pin-int

Dixon® N4S6-LS-WF

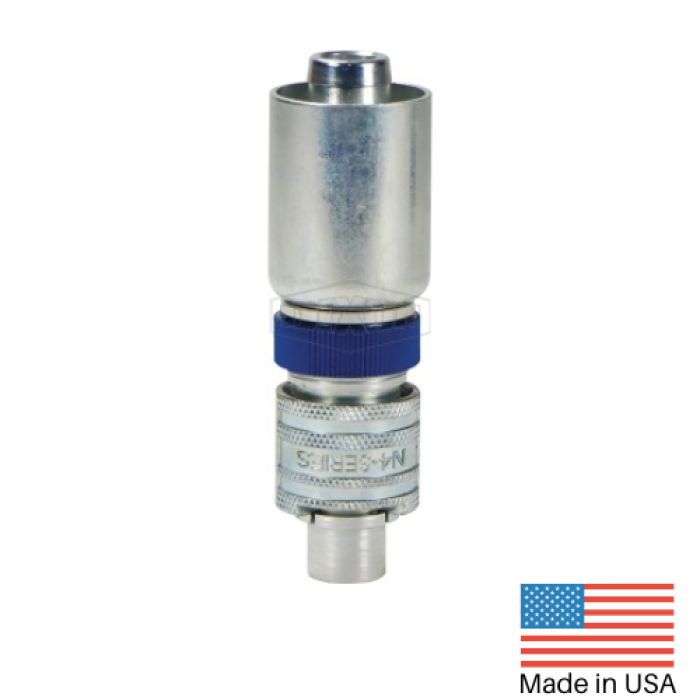

Dixon® Dix-Lock™ N Series Trivalent Chrome-Plated Steel Bowes Interchange Locking Head with Ferrule, 3/4 in Hose x 1/2 in Male Quick Disconnect

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN N4S6-LS-WF
  • MPN: N4S6-LS-WF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Dix-Lock™ Bowes Interchange Locking Head with Ferrule, N Series, Connection Type 1: Hose, Connection Size 1: 3/4 in, Connection Type 2: Quick Disconnect, Gender 2: Male, Connection Size 2: 1/2 in, 300 psi, Steel, Finish: Trivalent Chrome-Plated

California residents see Prop 65 WARNINGS

Fitting Type      :      Locking Head
Gender 2      :      Male
Connection Size 2      :      1/2 in
Pressure Rating      :      300 psi
Material      :      Steel
Finish      :      Trivalent Chrome-Plated
Series      :      N
Connection 1      :      3/4 in Hose
Connection Type 1      :      Hose
Connection Size 1      :      3/4 in
Connection 2      :      1/2 in Quick Disconnect
Connection Type 2      :      Quick Disconnect
  • Machined components are manufactured using solid steel bar stock
  • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Coupling sleeve constructed of cast zinc steel
  • Aluminum lock ring
  • Bowes interchange bayonet style
  • Interchangeable with Bowes 51000 Series, National Series 'B', MacDonald quick action, Campbell single-lock
