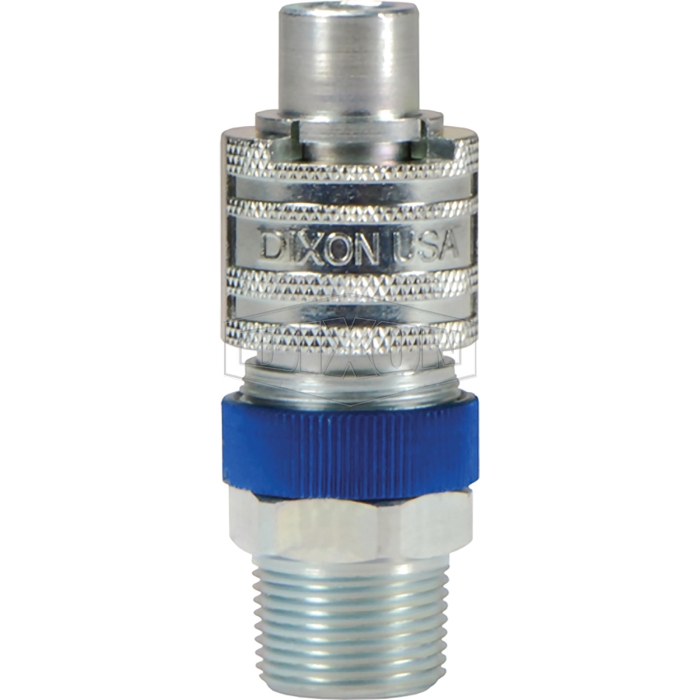

Dixon® Dix-Lock™ Interchange Safety-Lock End Plug, N Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: BSPT, Gender 2: Male, Connection Size 2: 1/2 in, Hex Size: 1-3/16 in, 500 psi, Steel, Dimensions: 1.31 in OD x 3.65 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | End Plug |
| Gender 2 | : | Male |
| Connection Size 2 | : | 1/2 in |
| Hex Size | : | 1-3/16 in |
| Pressure Rating | : | 500 psi |
| Material | : | Steel |
| Dimensions | : | 1.31 in OD x 3.65 in L |
| Series | : | N |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/2 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Male |
| Connection Size 1 | : | 1/2 in |
| Connection 2 | : | 1/2 in BSPT |
| Connection Type 2 | : | BSPT |
- Machined components are manufactured using solid bar stock
- Stainless steel retaining ring and spring maximize corrosion resistance and extend service life
- Steel componentry is plated using RoHS compliant trivalent chrome
- Coupling sleeve constructed of cast zinc steel
- Aluminum lock ring
- Bowes interchange bayonet style
- Interchangeable with Bowes 51000 Series, National Series 'B', MacDonald quick action, Campbell single-lock
Applications: For full flow coupling used on utility, air, water and nitrogen lines
Safety Notes:
- It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
- Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
- To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
