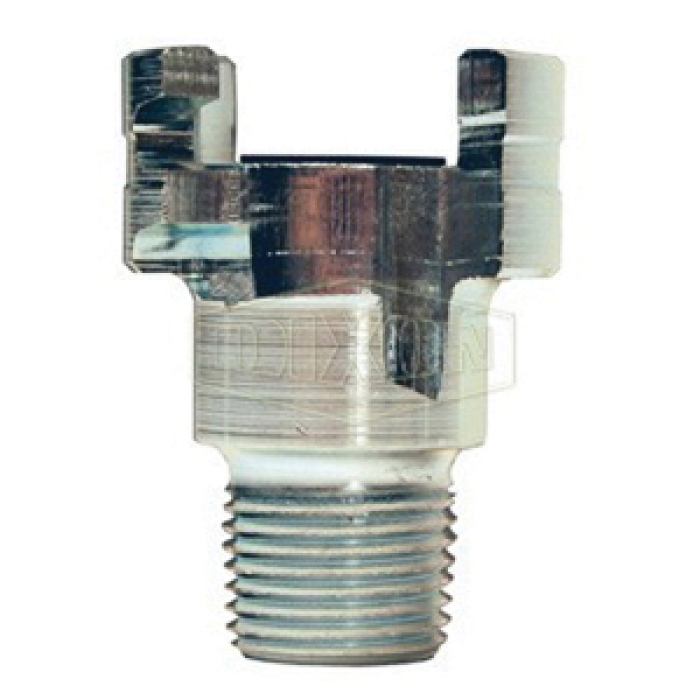

Dixon® Dual-Lock™ Thor Pneumatic Interchange Plug, P Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, 300 psi, Steel, Dimensions: 1.55 in OD x 2-1/4 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Gender 2 | : | Male |
| Connection Size 2 | : | 1/2 in |
| Thread Size 2 | : | 1/2-14 |
| Pressure Rating | : | 300 psi |
| Material | : | Steel |
| Dimensions | : | 1.55 in OD x 2-1/4 in L |
| Series | : | P |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/2 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1/2 in |
| Connection 2 | : | 1/2 in NPT |
| Connection Type 2 | : | NPTF |
- Machined components are manufactured using solid bar stock
- Nitrile (Buna-N) seals standard
- Thor Finger-Lock interchange
- Interchanges with National A-type, Campbell double-lock and Thor PHC Series couplings
- Smooth ID permits full flow paths to tool
- Spring-loaded interlocking engagement
Applications: For full flow coupling used on utility, air, water and nitrogen lines
Safety Notes:
- It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
- Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
- To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
