Dixon® 2JB3-B

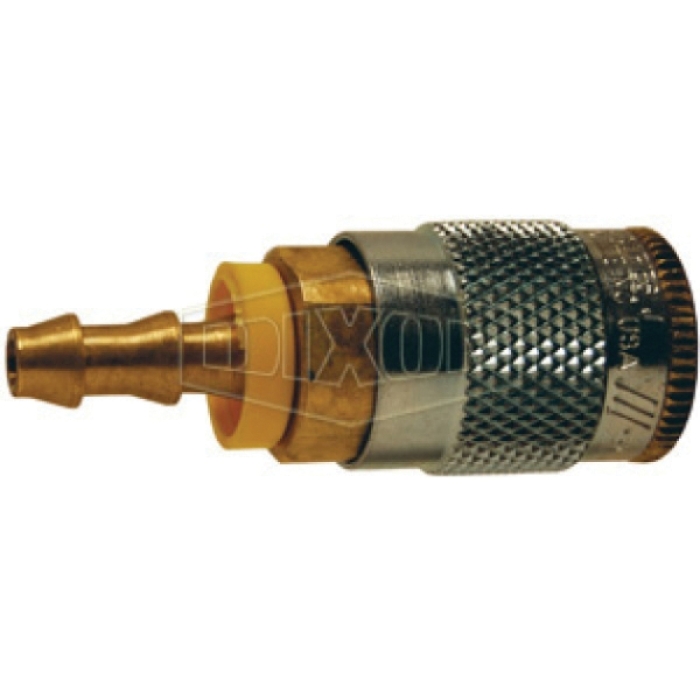

Dixon® J Series Brass Automotive Pneumatic Push-Loc Coupler, 1/4 in Quick Disconnect x 3/8 in Hose Barb

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 2JB3-B
  • MPN: 2JB3-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Automotive Pneumatic Push-Loc Coupler, Series: J, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: Hose Barb, Connection Size 2: 3/8 in, Hex Size: 3/4 in, 300 psi, Brass, Dimensions: 0.88 in OD x 2.49 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Connection Size 2      :      3/8 in
Hex Size      :      3/4 in
Pressure Rating      :      300 psi
Material      :      Brass
Dimensions      :      0.88 in OD x 2.49 in L
Series      :      J
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/4 in
Connection 2      :      3/8 in Hose Barb
Connection Type 2      :      Hose Barb
  • Machined components are manufactured using solid brass bar stock
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
  • Nitrile (Buna-N) seals are standard
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel sleeve and steel tubular valve
  • Reflate automotive interchange
  • Parker 10 Series, Rectus 55KM and Tomco A2100/PT400

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

Safety Notes: Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination.

  • Consult hose manufacturer's catalog for hose end connection ratings.
  • If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
