Dixon® J3F2

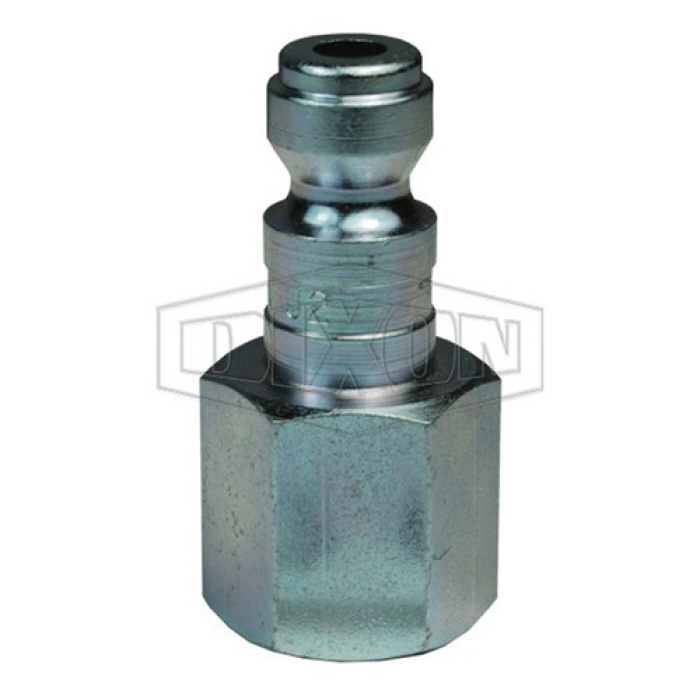

Dixon® J Series Steel Automotive Pneumatic Interchange Plug, 3/8 in Quick Disconnect x 1/4 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN J3F2
  • MPN: J3F2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Automotive Pneumatic Interchange Plug, J Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Hex Size: 11/16 in, 18000 psi, Steel, Dimensions: 0.79 in OD x 1.75 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      1/4 in
Hex Size      :      11/16 in
Pressure Rating      :      18000 psi
Material      :      Steel
Dimensions      :      0.79 in OD x 1.75 in L
Series      :      J
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/8 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPTF
  • Machined components are manufactured using solid bar stock
  • Truflate automotive interchange
  • Parker® 10 Series, Rectus 55KM and Tomco A2100/PT400

Safety Notes:

  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
