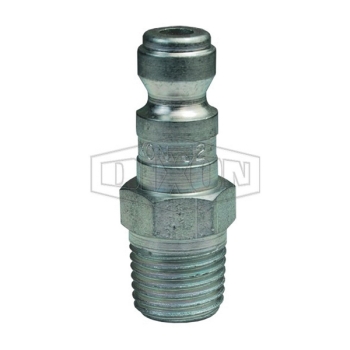

Dixon® Automotive Pneumatic Interchange Plug, J Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/4 in, Hex Size: 11/16 in, Steel, Finish: Zinc-Plated, Dimensions: 0.79 in OD x 1.78 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Gender 2 | : | Male |
| Connection Size 2 | : | 1/4 in |
| Hex Size | : | 11/16 in |
| Material | : | Steel |
| Finish | : | Zinc-Plated |
| Dimensions | : | 0.79 in OD x 1.78 in L |
| Series | : | J |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 3/8 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 3/8 in |
| Connection 2 | : | 1/4 in NPT |
| Connection Type 2 | : | NPTF |
- Machined components are manufactured using solid bar stock
- Truflate automotive interchange
- Parker® 10 Series, Rectus 55KM and Tomco A2100/PT400
Safety Notes:
- It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
- Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
- To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
