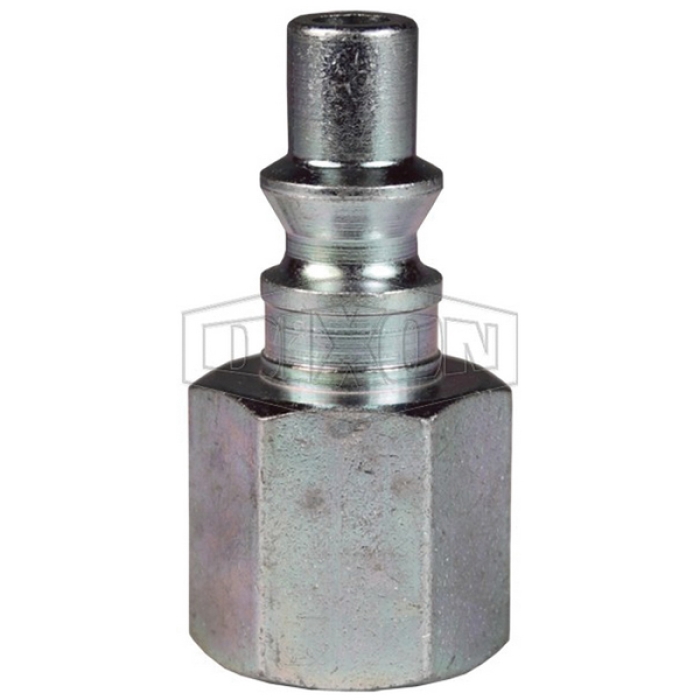

Dixon® ARO Pneumatic Interchange Plug, M Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 7/8 in, 300 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.01 in OD x 1.57 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Gender 2 | : | Female |
| Connection Size 2 | : | 3/8 in |
| Thread Size 2 | : | 3/8-18 |
| Hex Size | : | 7/8 in |
| Pressure Rating | : | 300 psi |
| Material | : | Steel |
| Finish | : | Trivalent Chrome-Plated |
| Dimensions | : | 1.01 in OD x 1.57 in L |
| Series | : | M |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 3/8 in NPT |
| Connection Type 2 | : | NPTF |
- Machined components are manufactured using solid bar stock
- Steel componentry is plated using RoHS compliant trivalent chrome
- Automatic couplings interchange with ARO 210/310 and Hansen 210/310, manual couplings interchange with Parker® 50-Series and Amflow type 'B'
Safety Notes:
- It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
- Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
- To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
