DIXON N4M6-LS

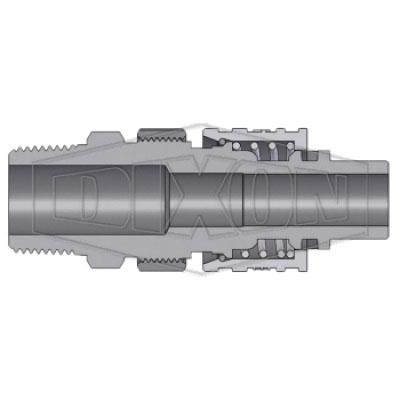

DIXON N Series N4M6-LS Interchange Safety Lock End Plug, 1/2 in x 3/4 in, Male Quick-Disconnect x MNPTF, Steel, 500 psi
- Manufacturers: Dixon Valve & Coupling Company, LLC
- Brand Name: DIXON
- Tipco Part No: DXN QM88
- MPN: N4M6-LS
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
DIXON Interchange Safety Lock End Plug, Gender 2: Male, Connection Size 2: 3/4 in, 1-3/16 in Hex, 500 psi, Steel, Chrome Trivalent-Plated, 1.31 in Dia x 3.65 in L, N Series, -40 to 250 deg F, Connection Type 1: Male Quick-Disconnect, Gender 1: Male, Connection Size 1: 1/2 in, Thread Size 1: 3/4-14, Connection Type 2: MNPTF
| Fitting Type | : | Plug |
| Gender 2 | : | Male |
| Connection Size 2 | : | 3/4 in |
| Hex Size | : | 1-3/16 in |
| Pressure Rating | : | 500 psi |
| Material | : | Steel |
| Finish | : | Chrome Trivalent-Plated |
| Dimensions | : | 1.31 in Dia x 3.65 in L |
| Series | : | N Series |
| Temperature Rating | : | -40 to 250 deg F |
| Connection Type 1 | : | Male Quick-Disconnect |
| Gender 1 | : | Male |
| Connection Size 1 | : | 1/2 in |
| Thread Size 1 | : | 3/4-14 |
| Connection Type 2 | : | MNPTF |
- Machined components are manufactured using solid bar stock
- Stainless steel retaining ring and spring maximize corrosion-resistant and extend service life
- Steel componentry is plated using RoHS compliant trivalent chrome
- Coupling sleeve constructed of cast zinc steel
- Aluminum lock ring
- Bowes interchange bayonet style
- Interchangeable with Bowes 51000 Series, National Series 'B', MacDonald quick action, Campbell single-lock
