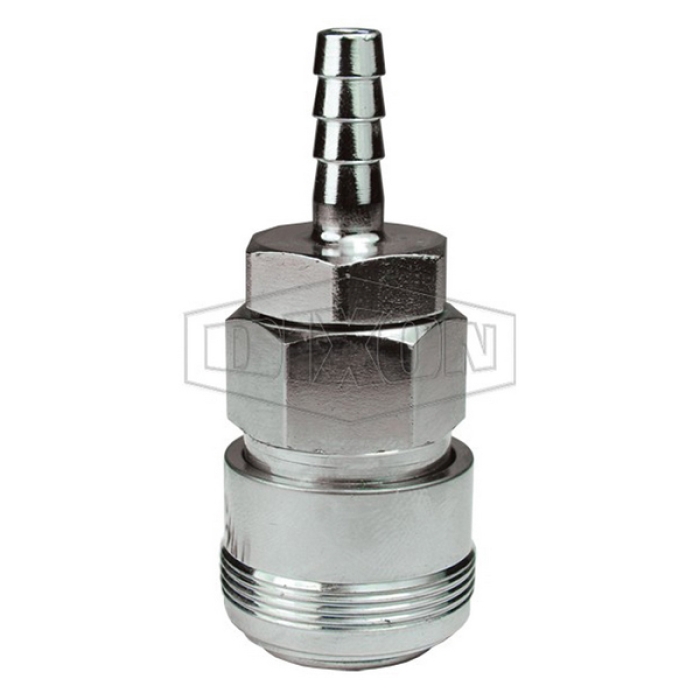

Dixon® 2NKS2

Dixon® Japanese Pneumatic Industrial Interchange Coupler, NK Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: Hose Barb, Connection Size 2: 1/4 in, Hex Size: 3/4 in, 300 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.02 in OD x 2.4 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

• Machined components are manufactured using solid steel bar stock
• Stainless steel springs, carbon steel balls and retaining rings
• Nitrile (Buna-N) seals are standard
• Steel componentry is plated using RoHS compliant trivalent chrome
• Japanese Industrial Interchange pneumatic coupling
• Nitto Kohki Hi-cupla 200, Rectus Series 13 and CEJN Series 315

Safety Notes:

• Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination.
• Consult hose manufacturer's catalog for hose end connection ratings.
• If in doubt, test under controlled conditions for suitability to application.
• Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.
• It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
• Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
• To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
