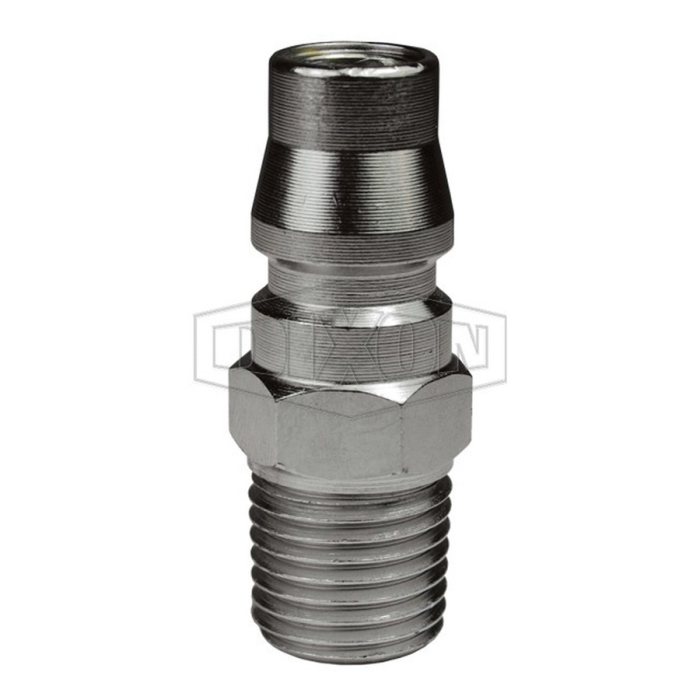

Dixon® NK2BM2

Dixon® NK Series Trivalent Chrome-Plated Steel Japanese Pneumatic Industrial Interchange Plug, 1/4 in Quick Disconnect x 1/4 in Male BSPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN NK2BM2
  • MPN: NK2BM2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Japanese Pneumatic Industrial Interchange Plug, NK Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: BSPT, Gender 2: Male, Connection Size 2: 1/4 in, Hex Size: 5/8 in, 300 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 0.52 in OD x 1.54 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Male
Connection Size 2      :      1/4 in
Hex Size      :      5/8 in
Pressure Rating      :      300 psi
Material      :      Steel
Finish      :      Trivalent Chrome-Plated
Dimensions      :      0.52 in OD x 1.54 in L
Series      :      NK
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in BSPT
Connection Type 2      :      BSPT
  • Machined components are manufactured using solid steel bar stock
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Japanese Industrial Interchange pneumatic coupling, Nitto Kohki Hi-cupla 200, Rectus Series 13 and CEJN Series 315

Safety Notes:

  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
