Dixon® 2SHDM3
Send Print
  1. pin-int

Dixon® 2SHDM3

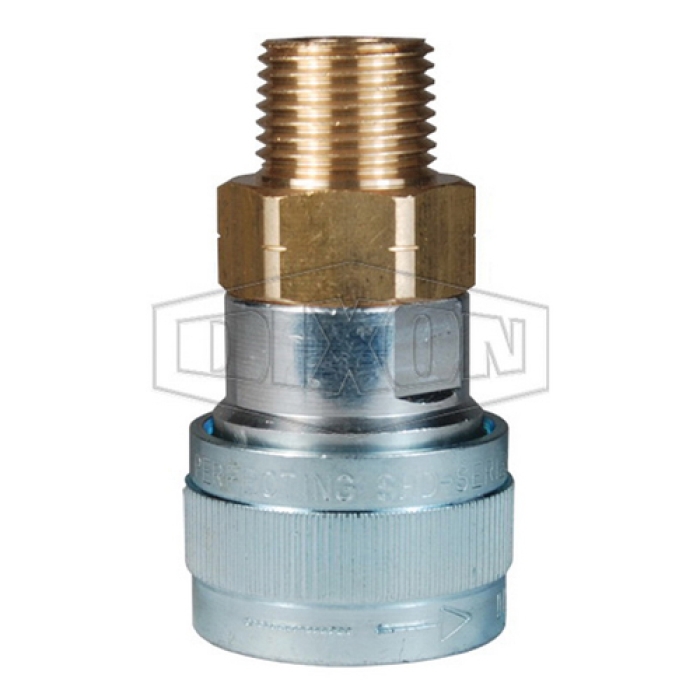

Dixon® SHD Aluminum Schrader Pneumatic Interchange Coupler, 1/4 in Quick Disconnect x 3/8 in MNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 2SHDM3
  • MPN: 2SHDM3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Schrader Pneumatic Interchange Coupler, SHD Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3/8 in, Hex Size: 11/16 in, 300 psi, Aluminum, Dimensions: 1.12 in OD x 2.28 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Gender 2      :      Male
Connection Size 2      :      3/8 in
Hex Size      :      11/16 in
Pressure Rating      :      300 psi
Material      :      Aluminum
Dimensions      :      1.12 in OD x 2.28 in L
Series      :      SHD
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/4 in
Connection 2      :      3/8 in NPT
Connection Type 2      :      NPT
  • Machined components are manufactured using solid bar stock
  • Stainless steel toggle-pawls and springs, carbon steel retaining rings
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Adapter components are constructed of brass
  • Sleeves are constructed of steel
  • Nitrile (Buna-N) seals are standard
  • Schrader Twist-Lock interchange
  • Parker® Twist-Lock, Tomco Series-TL, Foster SHD

Safety Notes:

  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
