Dixon® 63PT-0223

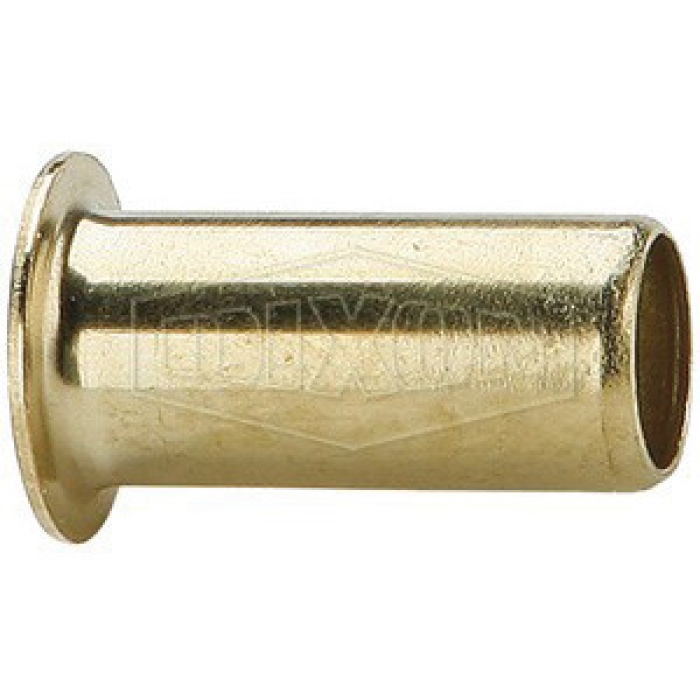

Dixon® 63PT-0223 Brass Insert, 1/8 in Compression

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 63PT-0223
  • MPN: 63PT-0223
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Insert, Connection Type 1: Compression, Connection Size 1: 1/8 in, Connection Type 2: Compression, Connection Size 2: 1/8 in, 400 psi, Brass, Dimensions: 0.073 in OD x 0.45 in L, Dimension Standards: SAE J512, -65 to 250 deg F, For Use With: Copper, Aluminum and Thermoplastic Tubing, Low and Medium Pressure Tubing Connection

California residents see Prop 65 WARNINGS

Fitting Type      :      Insert
Connection 1      :      1/8 in Compression
Connection Type 1      :      Compression
Connection Size 1      :      1/8 in
Connection 2      :      1/8 in Compression
Connection Type 2      :      Compression
Connection Size 2      :      1/8 in
Pressure Rating      :      400 psi
Material      :      Brass
Dimensions      :      0.073 in OD x 0.45 in L
Dimension Standards      :      SAE J512
Temperature Rating      :      -65 to 250 deg F
For Use With      :      Copper, Aluminum and Thermoplastic Tubing, Low and Medium Pressure Tubing Connection

Applications: For low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved

Instructions:

  • No flaring, soldering or other preparation of tubing necessary to assemble.
  • Slide nut, then sleeve onto tubing.
  • The thread end of the nut must face out.
  • Insert tube into the fitting.
  • Be sure the tube is bottomed on the fitting shoulder.
  • Assemble nut to body, and tighten hand tight.
  • Then follow the number of appropriate wrench turns for the given size.

Safety Notes:

  • Not recommended for steel tubing.
  • Not recommended for applications using gaseous media.
