World Wide Metric 100109 WOW 100109 | Tipco Technologies
World Wide Metric 100109
Send Print
  1. pin-int

World Wide Metric 100109

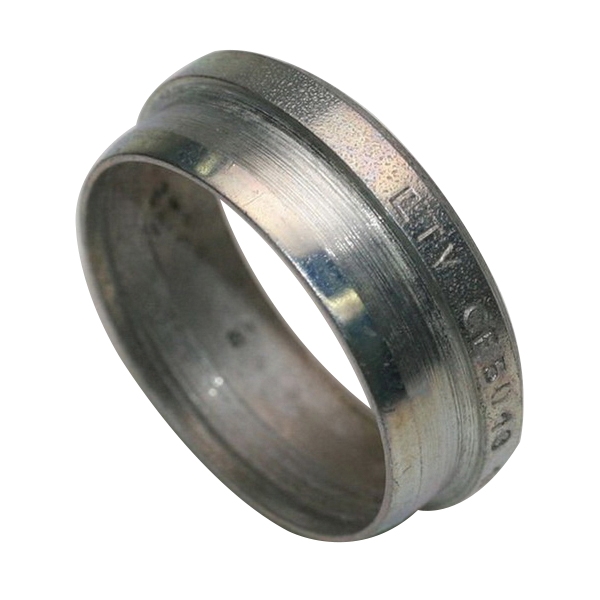

World Wide Metric 1001 Carbon Steel Cutting Ring, 18 mm Metric Tube

  • Manufacturers: World Wide Metric
  • Brand Name: World Wide Metric
  • Tipco Part No: WOW 100109
  • MPN: 100109
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

World Wide Metric Cutting Ring, 1001 Series, Connection Type 1: Metric Tube, Connection Size 1: 18 mm, 315 bar, Carbon Steel, Dimensions: 23 mm Dia x 10 mm L, Dimension Standards: DIN 2353

Fitting Type      :      Cutting Ring
Series      :      1001
Connection 1      :      18 mm Metric
Connection Type 1      :      Metric Tube
Connection Size 1      :      18 mm
Pressure Rating      :      315 bar
Material      :      Carbon Steel
Dimensions      :      23 mm Dia x 10 mm L
Dimension Standards      :      DIN 2353
