Aeroquip® 1477X10X10X4 AER 1477X10X10X4 | Tipco Technologies
Aeroquip® 1477X10X10X4
Send Print
  1. pin-int

Aeroquip® 1477X10X10X4

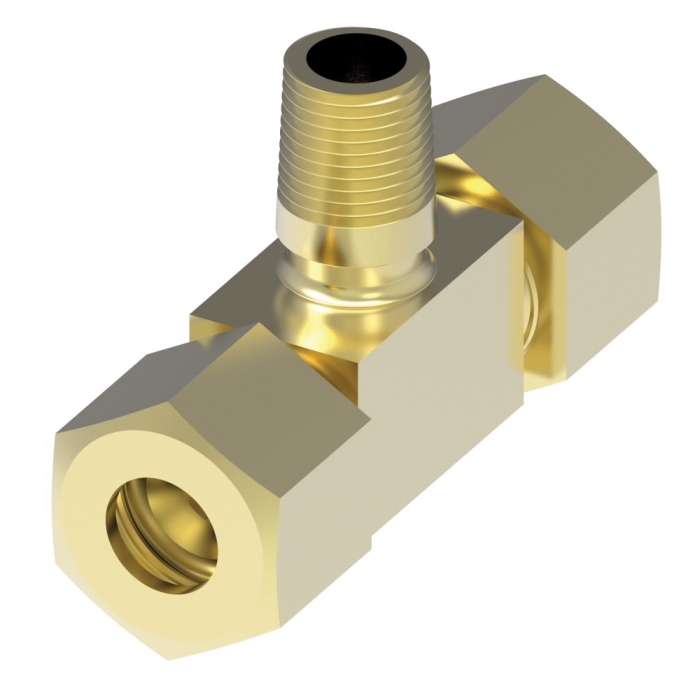

Aeroquip® 1477X10X10X4 Nickel-Plated CA360 Brass Air Brake Branch Tee, 5/8 in Compression Nylon Tube x 5/8 in Compression Nylon Tube x 1/4 in FNPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 1477X10X10X4
  • MPN: 1477X10X10X4
  • UPC: 725975772102
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Air Brake Branch Tee, Connection Type 1: Compression Nylon Tube, Connection Size 1: 5/8 in, Connection Type 2: Compression Nylon Tube, Connection Size 2: 5/8 in, Connection Type 3: NPT, Gender 3: Female, Connection Size 3: 1/4 in, Thread Size 3: 1/4-18, Hex Size: 0.9375 x 0.35 in, 150 psi, CA360 Brass, Finish: Nickel-Plated, Dimensions: 2.64 in L x 0.386 in W x 1.38 in H, -40 to 200 deg F, For Use With: Eaton Air Brake Tubing

California residents see Prop 65 WARNINGS

Fitting Type      :      Tee
Connection Size 2      :      5/8 in
Connection 3      :      1/4 in NPT
Connection Type 3      :      NPT
Gender 3      :      Female
Connection Size 3      :      1/4 in
Thread Size 3      :      1/4-18
Hex Size      :      0.9375 x 0.35 in
Pressure Rating      :      150 psi
Material      :      CA360 Brass
Finish      :      Nickel-Plated
Dimensions      :      2.64 in L x 0.386 in W x 1.38 in H
Connection 1      :      5/8 in Compression
Temperature Rating      :      -40 to 200 deg F
For Use With      :      Eaton Air Brake Tubing
Connection Type 1      :      Compression Nylon Tube
Connection Size 1      :      5/8 in
Connection 2      :      5/8 in Compression
Connection Type 2      :      Compression Nylon Tube

Standards/Certifications: DOT FMVSS 571.106 Approved

  • Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

    Applications: For air brake systems except where temperatures exceed 200 deg F or where battery acid can drip on tubing
