Aeroquip® 33806B-Y76
Send Print
  1. pin-int

Aeroquip® 33806B-Y76

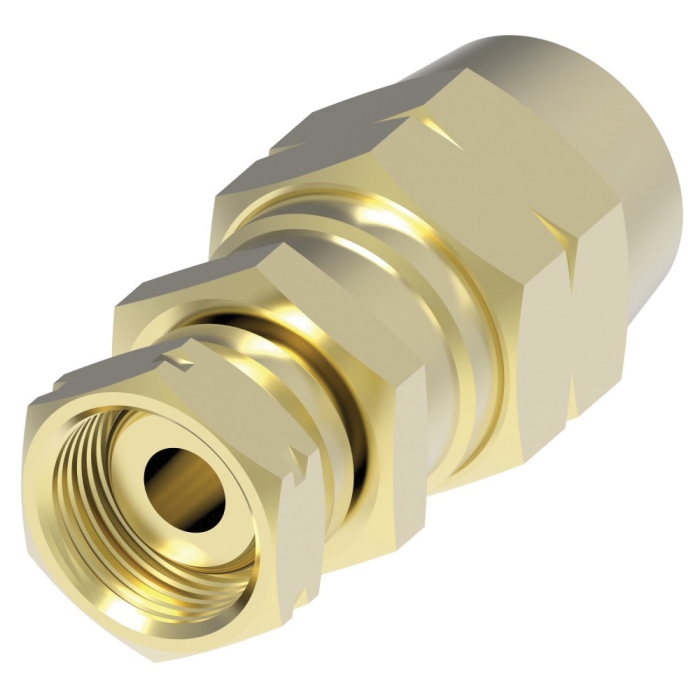

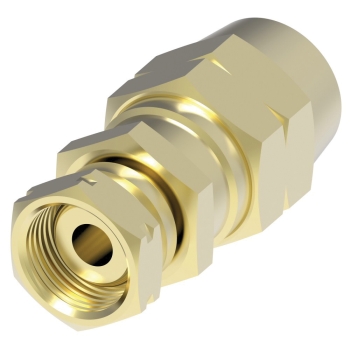

Aeroquip® 338 B Brass Field Attachable Air Brake Connector, 3/8 in Hose x 3/4-20 UNF Female ABS Threaded

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 33806B-Y76
  • MPN: 33806B-Y76
  • UPC: 725975062043
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Field Attachable Air Brake Connector, 338 B Series, 2.4 in Length, 1.063 in Width, 1.063 in Height, Connection Type 1: Hose, Connection Size 1: 3/8 in, Connection Type 2: Female Threaded, Connection Size 2: 3/4-20 UNF, Brass, 4000 psi, For Use With: H338, EC038 Air Brake Hoses, Hex Size: 1.063 x 0.969 in

California residents see Prop 65 WARNINGS

Connection Size 2      :      3/4-20 UNF
Series      :      338 B
Hex Size      :      1.063 x 0.969 in
Pressure Rating      :      4000 psi
Material      :      Brass
For Use With      :      H338, EC038 Air Brake Hoses
Connection Type 1      :      Hose
Connection Size 1      :      3/8 in
Connection Type 2      :      Female Threaded

Applications: Air brake hose lines
