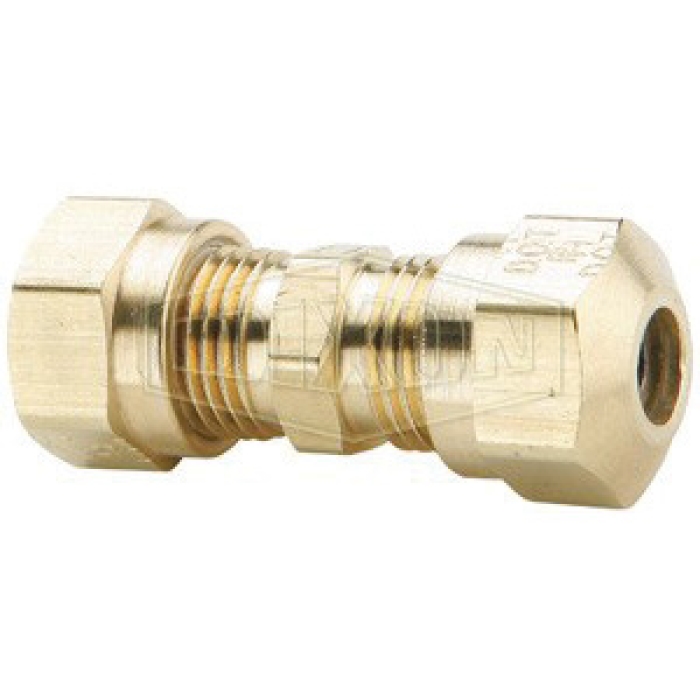

Dixon® Air Brake Union, Connection Type 1: Tube, Connection Size 1: 1/2 in, Thread Size 1: 11/16-20, Connection Type 2: Tube, Connection Size 2: 1/2 in, Thread Size 2: 11/16-20, Hex Size: 11/16 in, 150 psi, Brass, Dimensions: 2.33 in L, Dimension Standards: SAE J246, SAE 100101, -40 to 200 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Union |
| Connection Size 2 | : | 1/2 in |
| Thread Size 2 | : | 11/16-20 |
| Hex Size | : | 11/16 in |
| Pressure Rating | : | 150 psi |
| Material | : | Brass |
| Dimensions | : | 2.33 in L |
| Dimension Standards | : | SAE J246, SAE 100101 |
| Connection 1 | : | 1/2 in Tube |
| Temperature Rating | : | -40 to 200 deg F |
| Connection Type 1 | : | Tube |
| Connection Size 1 | : | 1/2 in |
| Thread Size 1 | : | 11/16-20 |
| Connection 2 | : | 1/2 in Tube |
| Connection Type 2 | : | Tube |
- Positive grip
- Machined from CA260, CA345 or CA377 brass
- Utilize ribbed sleeve for compression and positive grip
Applications: Designed for use in air brake systems or cab controls
