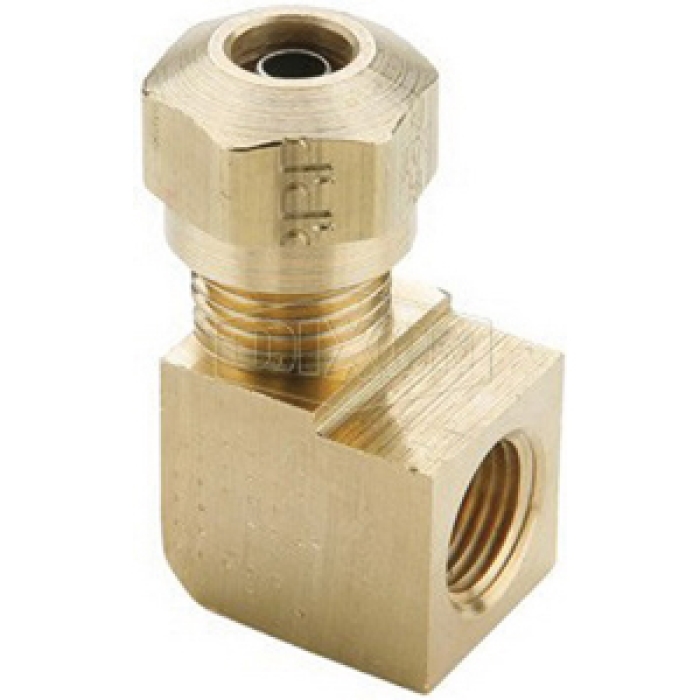

Dixon® Air Brake Elbow, Connection Type 1: Tube, Connection Size 1: 3/8 in, Thread Size 1: 17/32-24, Connection Type 2: Threaded, Gender 2: Female, Connection Size 2: 1/8 in, Hex Size: 1/8 in, 150 psi, Brass, -40 to 200 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Elbow |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/8 in |
| Hex Size | : | 1/8 in |
| Pressure Rating | : | 150 psi |
| Material | : | Brass |
| Connection 1 | : | 3/8 in Tube |
| Temperature Rating | : | -40 to 200 deg F |
| Connection Type 1 | : | Tube |
| Connection Size 1 | : | 3/8 in |
| Thread Size 1 | : | 17/32-24 |
| Connection 2 | : | 1/8 in Threaded |
| Connection Type 2 | : | Threaded |
- Positive grip
- Machined from CA260, CA345 or CA377 brass
- Utilize ribbed sleeve for compression and positive grip
Applications: Designed for use in air brake systems or cab controls
Instructions:
- Cut tubing squarely maximum of 15 deg angle allowable.
- Check that port or mating part is clean and free of debris.
- Insert tubing into fittings until it bottoms on seat.
- Tighten nut with wrench until one thread remains visible on the fittings body, (this will allow for a number of remakes) or, the nut should be screwed down finger tight, then wrench tightened according to the tube size used.
Catalog/Catalog Cut Sheet
