Dixon® AQ62DOT6

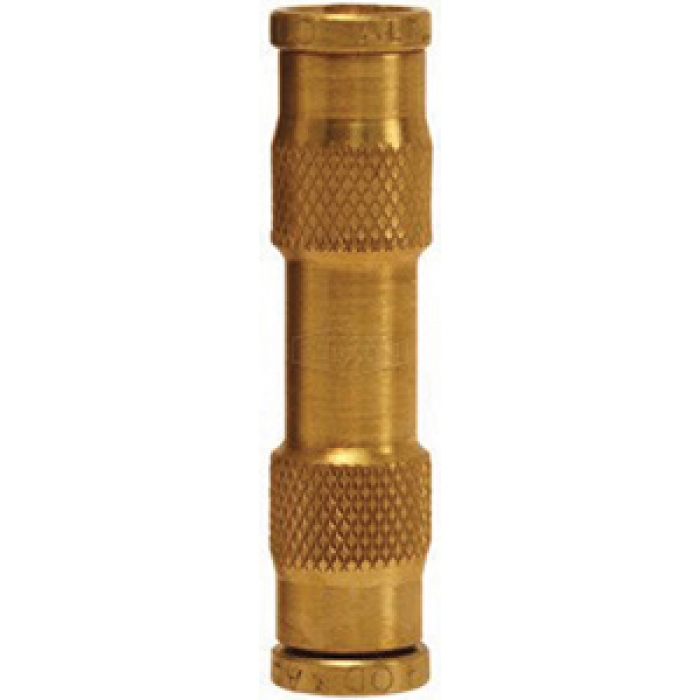

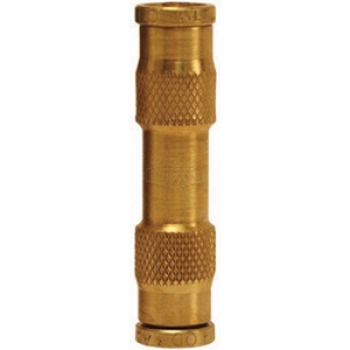

Dixon® AQ62DOT6 Brass Union Connector, 3/8 in Push-to-Connect

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN AQ62DOT6
  • MPN: AQ62DOT6
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Union Connector, Connection Type 1: Push-to-Connect, Connection Size 1: 3/8 in, Connection Type 2: Push-to-Connect, Connection Size 2: 3/8 in, Brass, Dimension Standards: SAE J1131, SAE J2494-1 and SAE J2494-3, -40 to 212 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Connector
Connection Size 2      :      3/8 in
Material      :      Brass
Dimension Standards      :      SAE J1131, SAE J2494-1 and SAE J2494-3
Connection 1      :      3/8 in Push-to-Connect
Temperature Rating      :      -40 to 212 deg F
Connection Type 1      :      Push-to-Connect
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in Push-to-Connect
Connection Type 2      :      Push-to-Connect
  • Buna-N seal material
  • Fittings are suitable for use up to the maximum working pressure of the plastic tubing used
  • Suitable for vacuum service
  • CA360 brass
