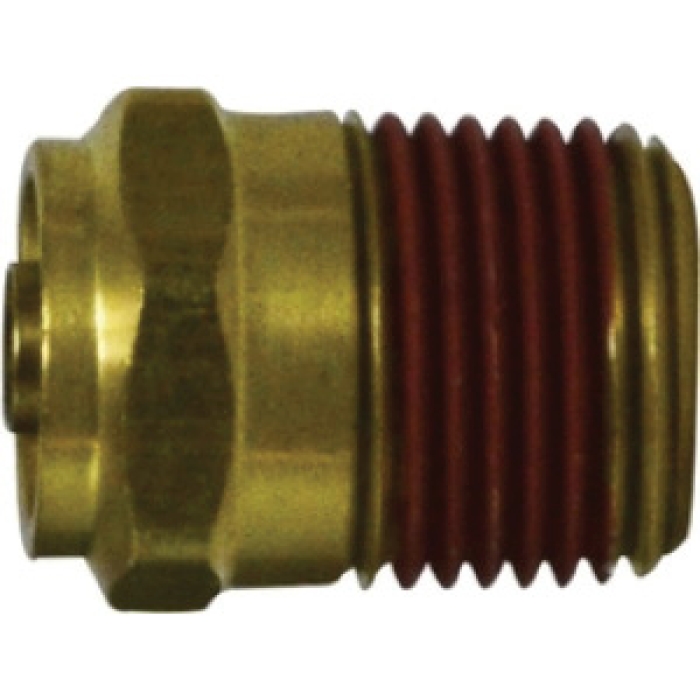

Midland Metals Connector, Connection Type 1: Push-to-Connect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/8 in, 150 psi, Brass, Dimension Standards: SAE J1131, -40 to 200 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Connector |
| Gender 2 | : | Male |
| Connection Size 2 | : | 1/8 in |
| Pressure Rating | : | 150 psi |
| Material | : | Brass |
| Dimension Standards | : | SAE J1131 |
| Connection 1 | : | 1/4 in Push-to-Connect |
| Temperature Rating | : | -40 to 200 deg F |
| Connection Type 1 | : | Push-to-Connect |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 1/8 in NPT |
| Connection Type 2 | : | NPTF |
D.O.T. fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied PTFE®-based pipe sealant to provide for easy assembly and leak-proof seal.
- Fast assembly, no tools required
- Simply push tubing in, saves up to 75% of assembly time compared to standard air compression fittings
- No loose parts to handle
- Fast disconnect, hold the collet collar with two fingers and pull-out tube, no tools required
- Reusable, can be connected and disconnected several times
- Reliable sealing, using recommended tubing, full sealing is guaranteed
- Buna-N O-ring standard
- Pre-applied Teflon®-based pipe sealant on all male pipe threads, saving customer additional labor
- Full flow design, provides more flow area
Standards/Certifications: DOT FMVSS 571.106 Approved
