Midland Industries 710604S

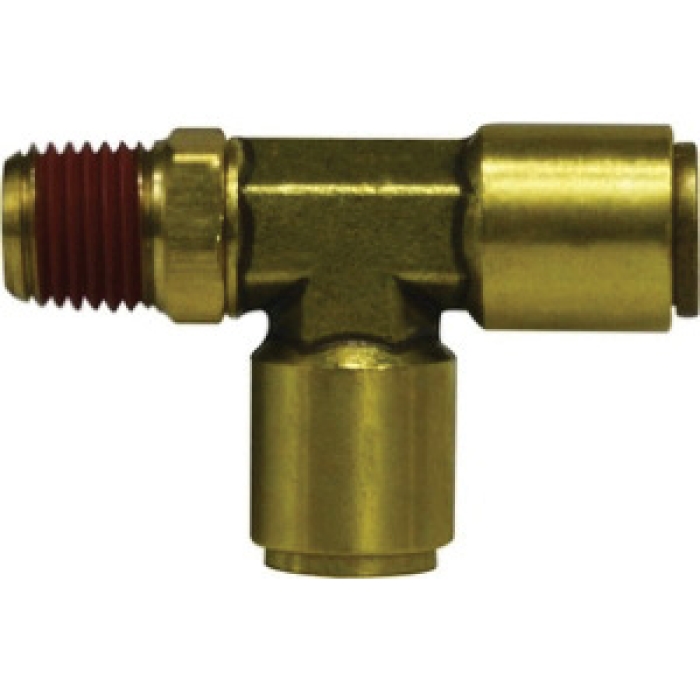

Midland Metals 710604S Brass Swivel Run Tee, 3/8 in Push-to-Connect x 3/8 in Push-to-Connect x 1/4 in MNPTF Swivel

  • Manufacturers: Midland Industries
  • Brand Name: Midland Industries
  • Tipco Part No: MID 710604S
  • MPN: 710604S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Midland Metals Swivel Run Tee, Connection Type 1: Push-to-Connect, Connection Size 1: 3/8 in, Connection Type 2: Push-to-Connect, Connection Size 2: 3/8 in, Connection Type 3: NPTF Swivel, Gender 3: Male, Connection Size 3: 1/4 in, 150 psi, Brass, Dimension Standards: SAE J1131, -40 to 200 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Tee
Connection Size 2      :      3/8 in
Connection 3      :      1/4 in NPTF Swivel
Connection Type 3      :      NPTF Swivel
Gender 3      :      Male
Connection Size 3      :      1/4 in
Pressure Rating      :      150 psi
Material      :      Brass
Dimension Standards      :      SAE J1131
Connection 1      :      3/8 in Push-to-Connect
Temperature Rating      :      -40 to 200 deg F
Connection Type 1      :      Push-to-Connect
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in Push-to-Connect
Connection Type 2      :      Push-to-Connect

D.O.T. fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied PTFE®-based pipe sealant to provide for easy assembly and leak-proof seal.

  • Fast assembly, no tools required
  • Simply push tubing in, saves up to 75% of assembly time compared to standard air compression fittings
  • No loose parts to handle
  • Fast disconnect, hold the collet collar with two fingers and pull-out tube, no tools required
  • Reusable, can be connected and disconnected several times
  • Reliable sealing, using recommended tubing, full sealing is guaranteed
  • Buna-N O-ring standard
  • Pre-applied Teflon®-based pipe sealant on all male pipe threads, saving customer additional labor
  • Full flow design, provides more flow area

Standards/Certifications: DOT FMVSS 571.106 Approved

  • Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
