AIGNEP® 50310N-10

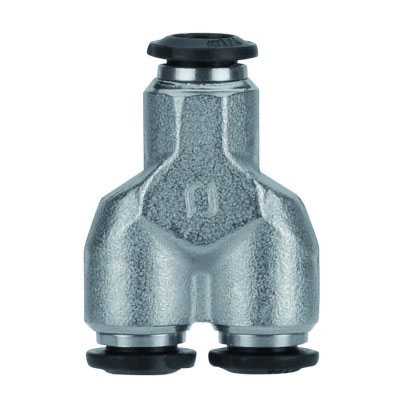

AIGNEP® 50N Nickel-Plated Brass Union Wye, 10 mm Push-to-Connect

  • Manufacturers: AIGNEP USA
  • Brand Name: AIGNEP®
  • Tipco Part No: AIG 50310N-10
  • MPN: 50310N-10
  • Min. Order Qty: 10
  • Qty. Interval: 10
  • Register to see Availability

AIGNEP Union Wye, 50N Series, Connection Type 1: Push-to-Connect, Connection Size 1: 10 mm, Connection Type 2: Push-to-Connect, Connection Size 2: 10 mm, Connection Type 3: Push-to-Connect, Connection Size 3: 10 mm, Hex Size: 18 mm, 290 psi, Brass, Finish: Nickel-Plated, Dimensions: 48 mm L, 0 - 160 deg F, For Use With: Nylon, Polyethylene, Polyurethane, and Copper Tubing

Fitting Type      :      Union Wye
Connection Size 2      :      10 mm
Connection 3      :      10 in Push-to-Connect
Connection Type 3      :      Push-to-Connect
Connection Size 3      :      10 mm
Series      :      50N
Hex Size      :      18 mm
Pressure Rating      :      290 psi
Material      :      Brass
Finish      :      Nickel-Plated
Dimensions      :      48 mm L
Connection 1      :      10 in Push-to-Connect
Temperature Rating      :      0 - 160 deg F
For Use With      :      Nylon, Polyethylene, Polyurethane, and Copper Tubing
Connection Type 1      :      Push-to-Connect
Connection Size 1      :      10 mm
Connection 2      :      10 in Push-to-Connect
Connection Type 2      :      Push-to-Connect
  • The 303 stainless steel gripper ensures a tight clamp for tubes of any material without damaging the tube's surface
  • The secure connection between the tube and the fitting will hold up to severe conditions such as impact and vibrations
  • The shape of the safety ring and the molded seal perfectly seal off the tube, creating a vacuum
  • Compatible media are compressed air, vacuum, water

Applications: Pneumatic automation, automotive, textile, packaging, compressed air circuit, vacuum
