AIGNEP® 85130-08 AIG 85130-08 | Tipco Technologies
AIGNEP® 85130-08
Send Print
  1. pin-int

AIGNEP® 85130-08

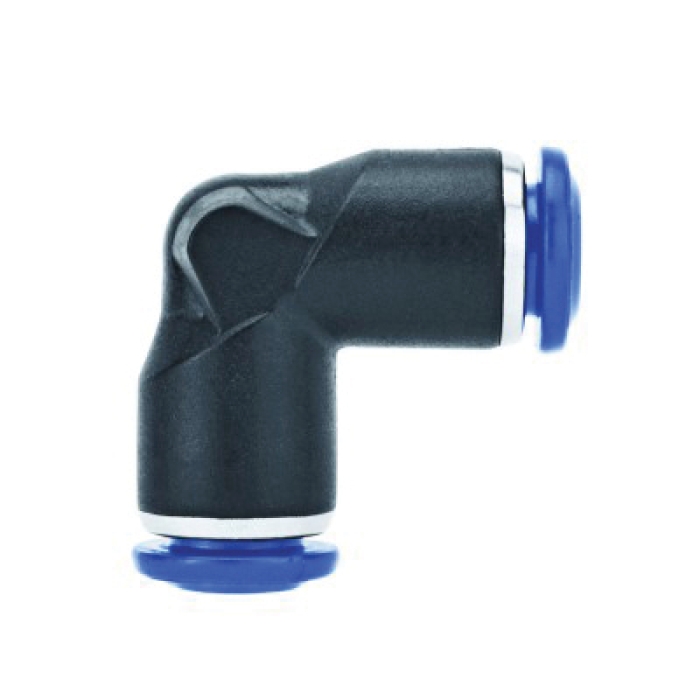

AIGNEP® 85 Series Black Composite Union Elbow, 1/2 in Push-to-Connect

  • Manufacturers: AIGNEP USA
  • Brand Name: AIGNEP®
  • Tipco Part No: AIG 85130-08
  • MPN: 85130-08
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

AIGNEP® Union Elbow, Series: 85, Connection Type 1: Push-to-Connect, Connection Size 1: 1/2 in, Connection Type 2: Push-to-Connect, Connection Size 2: 1/2 in, 250 psi, Composite, Black, 0 - 160 deg F, For Use With: Nylon, Polyethylene, Polyurethane, and Copper Tubing

Fitting Type      :      Elbow
Connection Size 2      :      1/2 in
Series      :      85
Pressure Rating      :      250 psi
Material      :      Composite
Color      :      Black
Dimensions      :      1.38 in L
Connection 1      :      1/2 in Push-to-Connect
Temperature Rating      :      0 - 160 deg F
For Use With      :      Nylon, Polyethylene, Polyurethane, and Copper Tubing
Connection Type 1      :      Push-to-Connect
Connection Size 1      :      1/2 in
Connection 2      :      1/2 in Push-to-Connect
Connection Type 2      :      Push-to-Connect
  • The 303 stainless steel gripper ensures a tight clamp for tubes of any material without damaging the tube's surface
  • The secure connection between the tube and the fitting will hold up to severe conditions such as impact and vibrations
  • The shape of the safety ring and the molded seal perfectly seal off the tube, creating a vacuum
  • Compatible media are compressed air, vacuum, water

Standards/Certifications: ISO 14743:2004 Specified

  • PED 2014/68/UE
  • REACH Compliant
  • RoHS Compliant

    Applications: Pneumatic automation, automotive, textile, packaging, compressed air circuit, vacuum
