AIGNEP® 87210-04-06
Send Print
  1. pin-int

AIGNEP® 87210-04-06

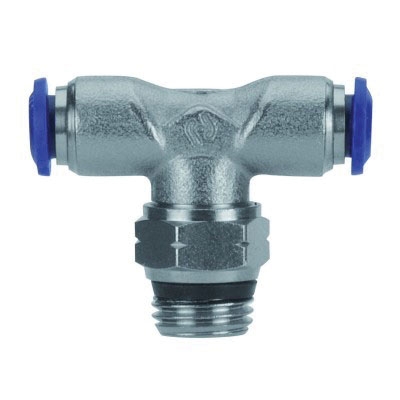

AIGNEP® 87 Series Nickel-Plated Brass Swivel Branch Tee, 1/4 in Male Push-to-Connect x 3/8 in SWIFTFIT Universal Threaded x 1/4 in Push-to-Connect

  • Manufacturers: AIGNEP USA
  • Brand Name: AIGNEP®
  • Tipco Part No: AIG 87210-04-06
  • MPN: 87210-04-06
  • Min. Order Qty: 10
  • Qty. Interval: 10
  • Register to see Availability

AIGNEP Swivel Branch Tee, 87 Series, Connection Type 1: Push-to-Connect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: Threaded, Connection Size 2: 3/8 in, Connection Type 3: Push-to-Connect, Connection Size 3: 1/4 in, Hex Size: 17 mm, 290 psi, Brass, Finish: Nickel-Plated, Dimensions: 53 mm L, 0 - 160 deg F, For Use With: Nylon, Polyethylene, Polyurethane, and Copper Tubing

Fitting Type      :      Tee
Connection Size 2      :      3/8 in
Connection 3      :      1/4 in Push-to-Connect
Connection Type 3      :      Push-to-Connect
Connection Size 3      :      1/4 in
Series      :      87
Hex Size      :      17 mm
Pressure Rating      :      290 psi
Material      :      Brass
Finish      :      Nickel-Plated
Dimensions      :      53 mm L
Connection 1      :      1/4 in Push-to-Connect
Temperature Rating      :      0 - 160 deg F
For Use With      :      Nylon, Polyethylene, Polyurethane, and Copper Tubing
Connection Type 1      :      Push-to-Connect
Gender 1      :      Male
Connection Size 1      :      1/4 in
Connection 2      :      3/8 in Threaded
Connection Type 2      :      Threaded
  • The 303 stainless steel gripper ensures a tight clamp for tubes of any material without damaging the tube's surface
  • The secure connection between the tube and the fitting will hold up to severe conditions such as impact and vibrations
  • The shape of the safety ring and the molded seal perfectly seal off the tube, creating a vacuum
  • Compatible media are compressed air, vacuum, water
  • Smaller hex dimensions compared to parallel threads
  • Fits with various parallel and tapered threads
  • All SWIFTFIT fittings have been equipped with threads and an NBR thread seal that will universally connect to all thread types

Applications: Pneumatic automation, automotive, textile, packaging, compressed air circuit, vacuum
