410-356-0003
.png)

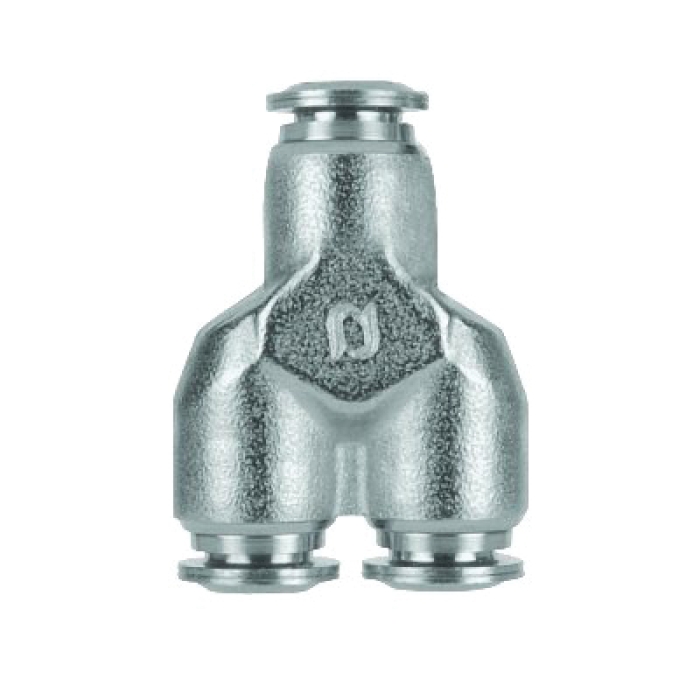

AIGNEP® Union Wye, Series: 89, Connection Type 1: Push-to-Connect, Connection Size 1: 1/4 in, Connection Type 2: Push-to-Connect, Connection Size 2: 1/4 in, Connection Type 3: Push-to-Connect, Connection Size 3: 1/4 in, 290 psi, Brass, Finish: Nickel-Plated, Dimensions: 36.5 mm L, 0 - 160 deg F, For Use With: Nylon, Polyethylene, Polyurethane, and Copper Tubing
| Fitting Type | : | Wye |
| Connection Size 2 | : | 1/4 in |
| Connection 3 | : | 1/4 in Push-to-Connect |
| Connection Type 3 | : | Push-to-Connect |
| Connection Size 3 | : | 1/4 in |
| Series | : | 89 |
| Pressure Rating | : | 290 psi |
| Material | : | Brass |
| Finish | : | Nickel-Plated |
| Dimensions | : | 36.5 mm L |
| Connection 1 | : | 1/4 in Push-to-Connect |
| Temperature Rating | : | 0 - 160 deg F |
| For Use With | : | Nylon, Polyethylene, Polyurethane, and Copper Tubing |
| Connection Type 1 | : | Push-to-Connect |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 1/4 in Push-to-Connect |
| Connection Type 2 | : | Push-to-Connect |
- The 303 stainless steel gripper ensures a tight clamp for tubes of any material without damaging the tube's surface
- The secure connection between the tube and the fitting will hold up to severe conditions such as impact and vibrations
- The shape of the safety ring and the molded seal perfectly seal off the tube, creating a vacuum
- Our rotating swivel elbow fittings are equipped with a safety ring that enables the fitting to rotate without losing a tight seal
- Compatible media are compressed air, vacuum, water
- Smaller hex dimensions compared to parallel threads
- Fits with various parallel and tapered threads
- All SWIFTFIT fittings have been equipped with threads and an NBR thread seal that will universally connect to all thread types
- Metallic release collet
Standards/Certifications: ISO 14743:2004 Specified
Applications: Pneumatic automation, automotive, textile, packaging, compressed air circuit, vacuum
