Dixon® 31010813

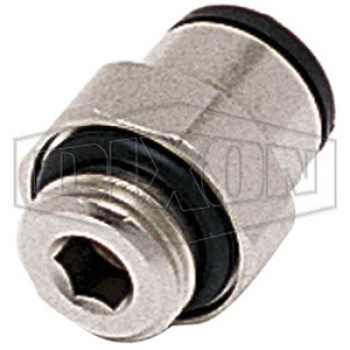

Dixon® 31010813 Nickel-Plated Brass Legris Metric Connector, 8 mm Push-to-Connect x 1/4 in Male BSPP

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 31010813
  • MPN: 31010813
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Legris Metric Connector, Connection Type 1: Push-to-Connect, Connection Size 1: 8 mm, Connection Type 2: BSPP, Gender 2: Male, Connection Size 2: 1/4 in, 290 psi, Brass, Finish: Nickel-Plated, -4 to 175 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Connector
Gender 2      :      Male
Connection Size 2      :      1/4 in
Pressure Rating      :      290 psi
Material      :      Brass
Finish      :      Nickel-Plated
Connection 1      :      8 mm Push-to-Connect
Temperature Rating      :      -4 to 175 deg F
Connection Type 1      :      Push-to-Connect
Connection Size 1      :      8 mm
Connection 2      :      1/4 in BSPP
Connection Type 2      :      BSPP
  • Positive seal for sealing and holding is accomplished instantaneously
  • Connect and disconnect numerous times
  • Full flow fitting seals on outside diameter of tubing
  • Internal hex allows ease of assembly in tight places
  • Polypropylene release button
  • Nickel-plated brass threads
  • Silicone-free
  • Buna-N D-seal

Instructions:

  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
