Dixon® 31090814

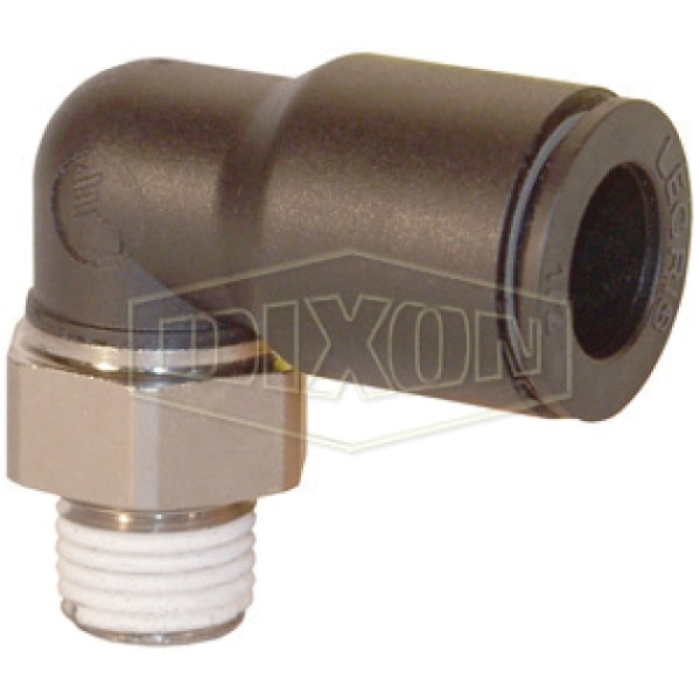

Dixon® 31090814 Black Nickel-Plated Brass/Nylon Legris Elbow, 5/16 in Push-to-Connect x 1/4 in MNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 31090814
  • MPN: 31090814
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Legris Elbow, Connection Type 1: Push-to-Connect, Connection Size 1: 5/16 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1/4 in, 290 psi, Brass/Nylon, Finish: Nickel-Plated, Black, -4 to 175 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Elbow
Gender 2      :      Male
Connection Size 2      :      1/4 in
Pressure Rating      :      290 psi
Material      :      Brass/Nylon
Finish      :      Nickel-Plated
Color      :      Black
Connection 1      :      5/16 in Push-to-Connect
Temperature Rating      :      -4 to 175 deg F
Connection Type 1      :      Push-to-Connect
Connection Size 1      :      5/16 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPT
  • Positive seal for sealing and holding is accomplished instantaneously
  • Connect and disconnect numerous times
  • Full flow fitting seals on outside diameter of tubing
  • Pre-applied thread sealant on all tapered male pipe threads
  • The body is orientable for positioning purposes
  • Nickel-plated brass threads
  • Black glass-filled nylon body
  • Buna-N D-seal
  • Polypropylene release button
  • Silicone-free

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

Instructions: Quick connect and disconnect, no tools required.

  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.

    Safety Notes: Maximum circuit pressure depends equally on the type and diameter of the tube used.

  • Pressure rating given at ambient temperature 70 deg F.
