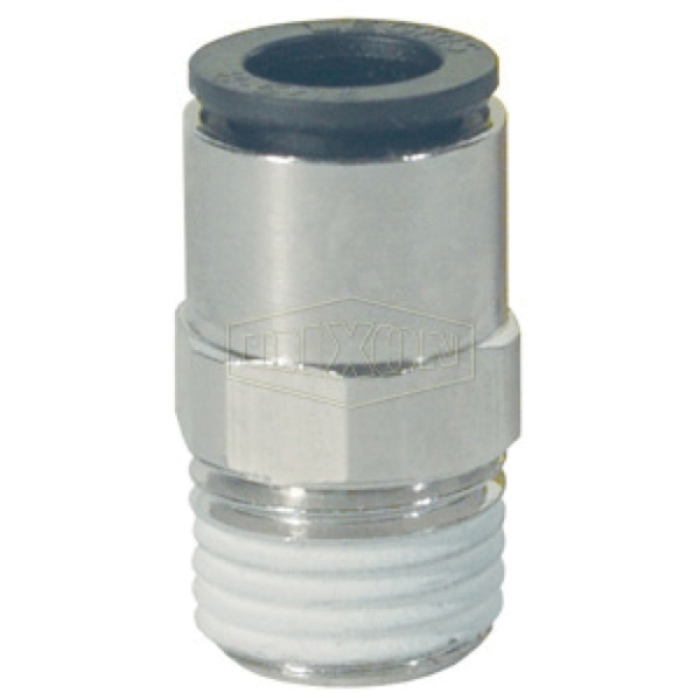

Dixon® Legris Connector, Connection Type 1: Push-to-Connect, Connection Size 1: 1/8 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1/8 in, 290 psi, Brass/Nylon, Finish: Nickel-Plated, Black, -4 to 175 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Connector |
| Gender 2 | : | Male |
| Connection Size 2 | : | 1/8 in |
| Pressure Rating | : | 290 psi |
| Material | : | Brass/Nylon |
| Finish | : | Nickel-Plated |
| Color | : | Black |
| Connection 1 | : | 1/8 in Push-to-Connect |
| Temperature Rating | : | -4 to 175 deg F |
| Connection Type 1 | : | Push-to-Connect |
| Connection Size 1 | : | 1/8 in |
| Connection 2 | : | 1/8 in NPT |
| Connection Type 2 | : | NPT |
- Positive seal for sealing and holding is accomplished instantaneously
- Connect and disconnect numerous times
- Full flow fitting seals on outside diameter of tubing
- Pre-applied thread sealant on all tapered male pipe threads
- Nickel-plated brass threads
- Black glass-filled nylon body
- Buna-N D-seal
- Polypropylene release button
- Silicone-free
Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
Instructions: Quick connect and disconnect, no tools required.
Safety Notes: Maximum circuit pressure depends equally on the type and diameter of the tube used.
