Dixon® 36756018

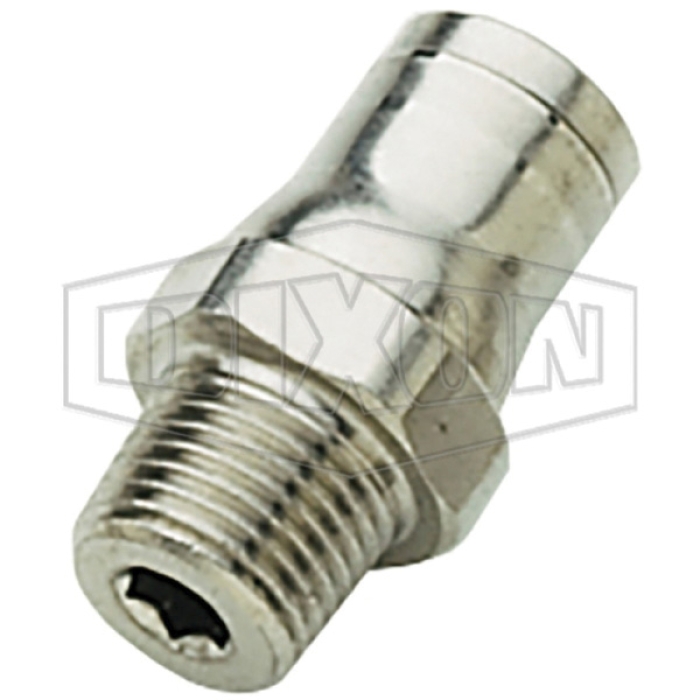

Dixon® 36756018 Nickel-Plated Brass Legris Connector, 3/8 in Push-to-Connect x 3/8 in MNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 36756018
  • MPN: 36756018
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Legris Connector, Connection Type 1: Push-to-Connect, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3/8 in, 435 psi, Brass, Finish: Nickel-Plated, -4 to 302 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Connector
Gender 2      :      Male
Connection Size 2      :      3/8 in
Pressure Rating      :      435 psi
Material      :      Brass
Finish      :      Nickel-Plated
Connection 1      :      3/8 in Push-to-Connect
Temperature Rating      :      -4 to 302 deg F
Connection Type 1      :      Push-to-Connect
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in NPT
Connection Type 2      :      NPT
  • Full flow
  • Excellent resistance to abrasion and corrosion
  • Silicone-free
  • High phosphorous FDA nickel-plated brass body
  • High phosphorous FDA nickel-plated brass back-up washer
  • High phosphorous FDA nickel-plated brass collet
  • FKM fluoroelastomer O-ring conforming to FDA standards
  • High phosphorous FDA nickel-plated brass base
  • Thread sealant is intentionally left off product so the appropriate sealant for the application can be applied

Standards/Certifications: FDA Approved

  • Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

    Applications: For food industry, packaging, robotics, pulp and paper and washdown

    Safety Notes: Maximum circuit pressure depends on media, temperature and diameter of tube used.
