Dixon® 38166000

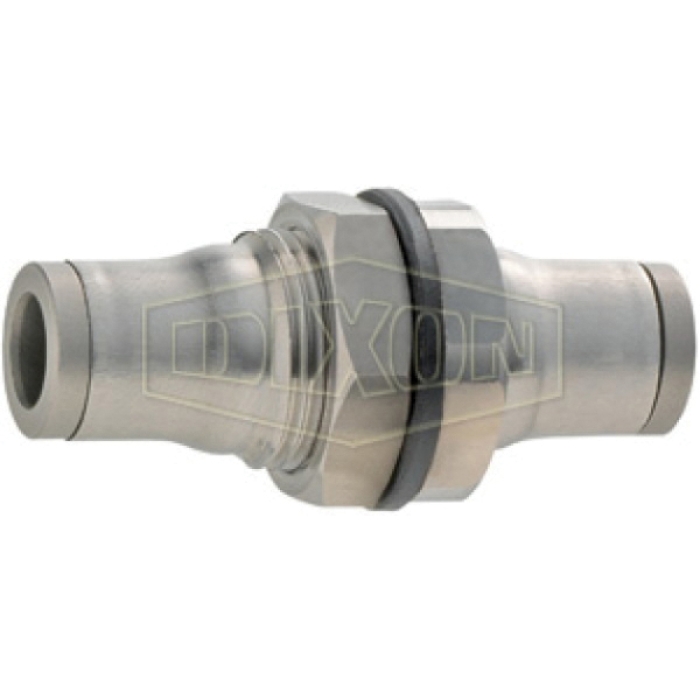

Dixon® 38166000 Stainless Steel Legris Bulkhead Connector, 3/8 in Push-to-Connect

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 38166000
  • MPN: 38166000
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Legris Bulkhead Connector, Connection Type 1: Push-to-Connect, Connection Size 1: 3/8 in, Connection Type 2: Push-to-Connect, Connection Size 2: 3/8 in, 435 psi, Stainless Steel, -13 to 302 deg F, For Use With: Semi-Rigid Nylon Tube, Flexible Polyurethane Tube, Low Density Polyethylene, PTFE Tube FEP 140, Stainless Steel, and Copper Tube

California residents see Prop 65 WARNINGS

Fitting Type      :      Connector
Connection Size 2      :      3/8 in
Pressure Rating      :      435 psi
Material      :      Stainless Steel
Connection 1      :      3/8 in Push-to-Connect
Temperature Rating      :      -13 to 302 deg F
For Use With      :      Semi-Rigid Nylon Tube, Flexible Polyurethane Tube, Low Density Polyethylene, PTFE Tube FEP 140, Stainless Steel, and Copper Tube
Connection Type 1      :      Push-to-Connect
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in Push-to-Connect
Connection Type 2      :      Push-to-Connect
  • AISI 316 stainless steel body with 316L stainless steel backup washer and 303L stainless steel collet
  • Silicone-free
  • FKM O-ring

Standards/Certifications: FDA and 1934/2004 CE

  • Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

    Applications: For many industries such as chemical, food, packaging and medical

    Safety Notes: Maximum circuit pressure depends on media, temperature and diameter of tube used.
