Dixon® 13MHHM100-150
Send Print
  1. pin-int

Dixon® 13MHHM100-150

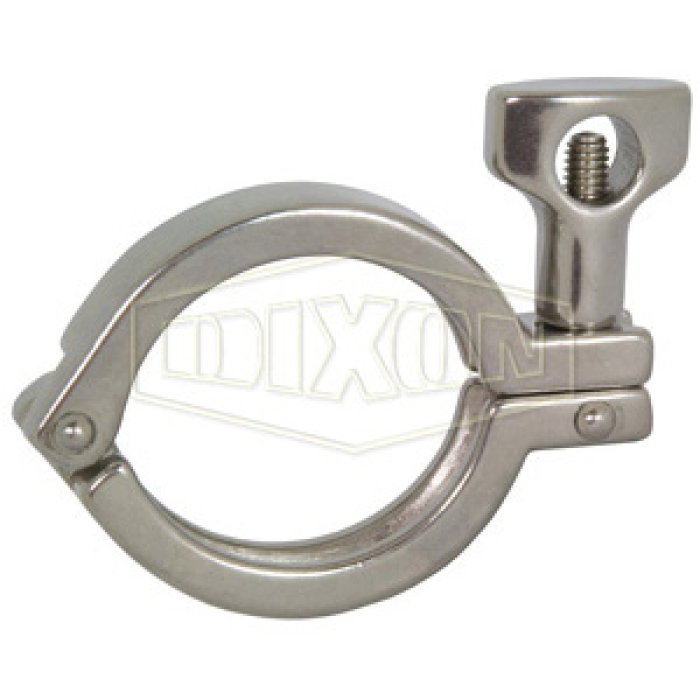

Dixon® 13MHHM 304 Stainless Steel Single-Pin Heavy-Duty Clamp, 1 - 1-1/2 in, 3/4 in Thick

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 13MHHM100-150
  • MPN: 13MHHM100-150
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Single-Pin Heavy-Duty Clamp, 13MHHM Series, Nominal Size: 1 - 1-1/2 in, Locking Style: Wing Nut, Torque Rating: 25 in-lb, 304 Stainless Steel, 3/4 in Thickness, Includes: Cross Hole Wing Nut

Locking Style      :      Wing Nut
Material      :      304 Stainless Steel
Thickness      :      3/4 in
Torque Rating      :      25 in-lb

Safety Notes:

  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques.
  • Tests are done hydostatically with no water hammer or shock loads.
  • All ratings shown are dependent upon related components within the system and proper installation.
