Dixon® 13MHPV400
Send Print
  1. pin-int

Dixon® 13MHPV400

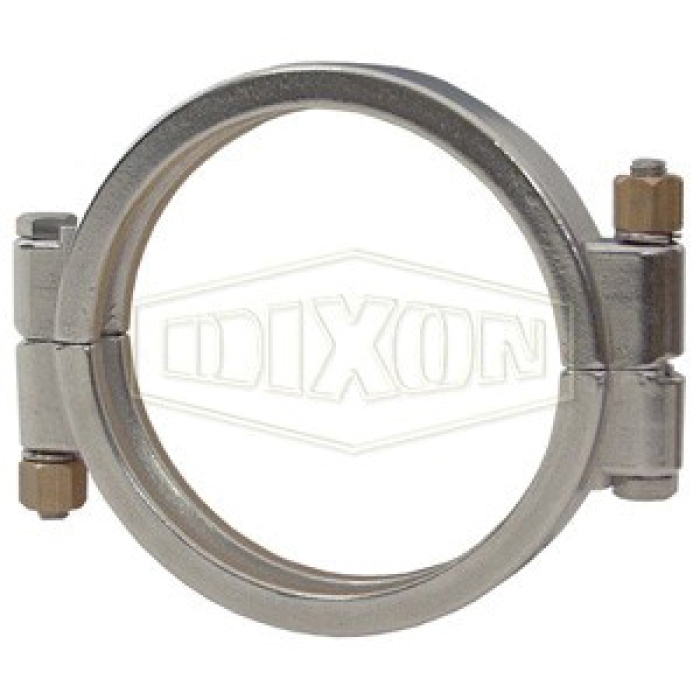

Dixon® 13MHPV400 304 Stainless Steel Pipe Size Bolted Clamp, 4 in, 5.9 in W, 1 in Thick

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 13MHPV400
  • MPN: 13MHPV400
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Pipe Size Bolted Clamp, 13MHP Series, Nominal Size: 4 in, Locking Style: Bolt/Bronze Nut, Torque Rating: 20 ft-lb, 304 Stainless Steel, 7 in Length, 5.9 in Width, 1 in Thickness

Material      :      304 Stainless Steel
Locking Style      :      Bolt/Bronze Nut
Torque Rating      :      20 ft-lb
Series      :      13MHP
Product Type      :      Bolt Clamp
Width      :      5.9 in
Thickness      :      1 in
Nominal Size      :      4 in
Length      :      7 in

Safety Notes:

  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques.
  • Tests are done hydostatically with no water hammer or shock loads.
  • All ratings shown are dependent upon related components within the system and proper installation.
  • Pipe size and tube OD size materials are not interchangeable.
