CPC® STC1700700
Send Print
  1. pin-int

CPC® STC1700700

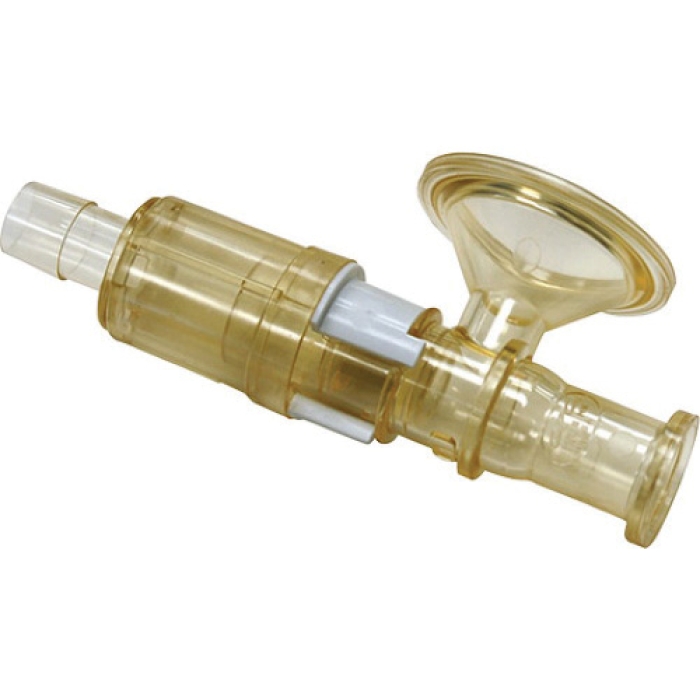

CPC® Steam-Thru® Natural Amber Tint Polysulfone Sanitary Steam-in-Place Connector, 1-1/2 in Sanitary x 3/4 in Sanitary x 1/2 in Hose Barb

  • Manufacturers: CPC
  • Brand Name: CPC®
  • Tipco Part No: CPC STC1700700
  • MPN: STC1700700
  • Min. Order Qty: 5
  • Qty. Interval: 5
  • Register to see Availability

CPC® Sanitary Steam-in-Place Connector, Series: Steam-Thru®, Connection Type 1: Sanitary, Connection Size 1: 1-1/2 in, Connection Type 2: Sanitary, Connection Size 2: 3/4 in, Connection Type 3: Hose Barb, Connection Size 3: 1/2 in, 20 psi, Polysulfone, Finish: Natural, Amber Tint, Dimensions: 5.09 in L x 2 in H, 39 - 104 deg F

Fitting Type      :      Connector
Connection Size 2      :      3/4 in
Connection 3      :      1/2 in Hose Barb
Connection Type 3      :      Hose Barb
Connection Size 3      :      1/2 in
Series      :      Steam-Thru®
Pressure Rating      :      20 psi
Material      :      Polysulfone
Finish      :      Natural
Color      :      Amber Tint
Dimensions      :      5.09 in L x 2 in H
Connection 1      :      1-1/2 in Sanitary
Temperature Rating      :      39 - 104 deg F
Connection Type 1      :      Sanitary
Connection Size 1      :      1-1/2 in
Connection 2      :      3/4 in Sanitary
Connection Type 2      :      Sanitary

Steam-Thru Connection's patented three port design allows steam to pass directly through the lower ports to steam on to stainless equipment. After the SIP cycle is completed, the connector's valve is actuated, creating a sterile flow path to single use systems.
