Dixon® 13SLN

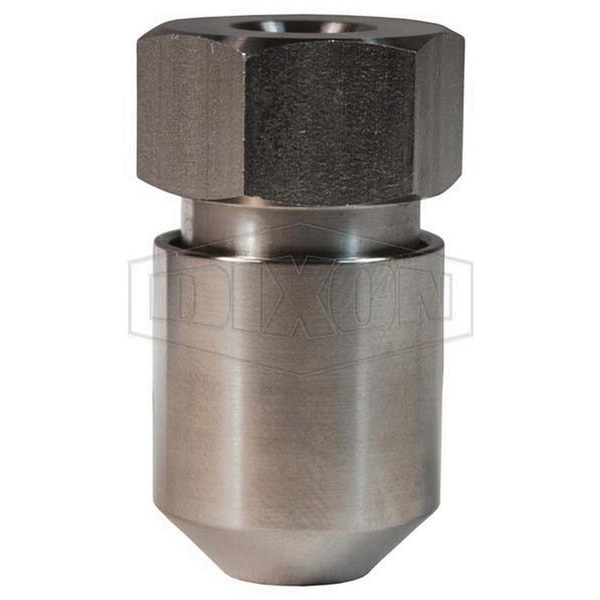

Dixon® 13SLN 304 Stainless Steel Spring Loaded Nut, 5/16 in

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 13SLN
  • MPN: 13SLN
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Spring Loaded Nut, Connection Size 1: 5/16 in, Thread Size 1: 5/16-18, 304 Stainless Steel, Dimensions: 1.73 in L x 7/8 in W, For Use With: Wing Nut Style Clamps

California residents see Prop 65 WARNINGS

Fitting Type      :      Nut
Material      :      304 Stainless Steel
Dimensions      :      1.73 in L x 7/8 in W
Connection 1      :      5/16 in
For Use With      :      Wing Nut Style Clamps
Connection Size 1      :      5/16 in
Thread Size 1      :      5/16-18
  • Lines using PTFE gaskets that are subject to large temperature swings can benefit from this special product
  • If the lines suffer from vibration and bolted clamps are not an option, refitting single pin clamps with this nut will keep the connections from leaking for a longer time than the standard wing nuts
  • If you transport material in tanks via truck, the vibrations can loosen the standard single pin clamps
  • Can be used on all wing nut style clamps
  • As the PTFE is compressed through the cycling of the lines, the spring load will help keep the connection from leaking
  • Spring-loaded nuts can add a level of insurance to the shipment
