Aeroquip® PR0312-57
Send Print
  1. pin-int

Aeroquip® PR0312-57

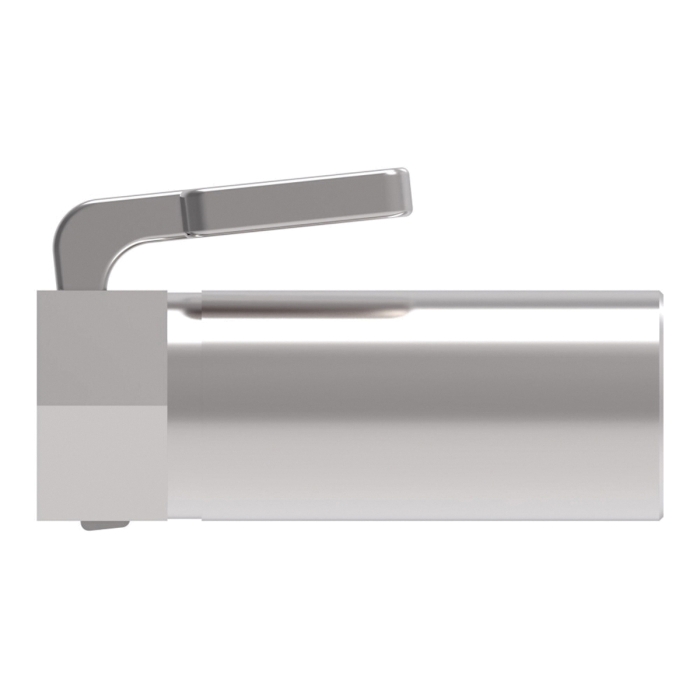

Aeroquip® Quickseal® PR Series Aluminum Tube Connector, 5/16 in Quick Disconnect x 1/4 in NPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN PR0312-57
  • MPN: PR0312-57
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Quickseal® Tube Connector, PR Series, Connection Type 1: Quick Disconnect, Connection Size 1: 5/16 in, Connection Type 2: NPT, Connection Size 2: 1/4 in, Aluminum, Dimensions: 3-1/2 in L, -20 to 250 deg F

Fitting Type      :      Connector
Connection Size 2      :      1/4 in
Material      :      Aluminum
Dimensions      :      3-1/2 in L
Temperature Rating      :      -20 to 250 deg F
Series      :      PR
Connection 1      :      5/16 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      5/16 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPT

The PR tube connectors feature the Danfoss automatic self-locking device, which instantly connects seal pressure and vacuum lines to straight end tubing creating a leak-free seal, These units work on the push-on, pull-off principle the higher the pressure, the tighter the hold.

Applications: For a range of services including helium, air, water, vacuum and most refrigerants
