CPC® MPC3301239

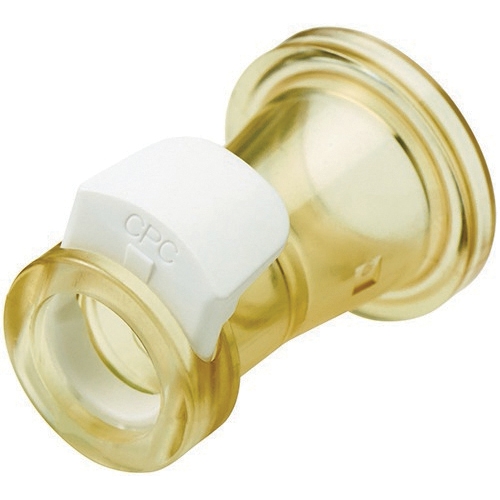

CPC® Sanitary Amber Tint Polysulfone Non-Valved Coupling Body, 3/4 in Quick Disconnect

  • Manufacturers: CPC
  • Brand Name: CPC®
  • Tipco Part No: GAM IRR MPC3301239-B
  • MPN: MPC3301239
  • Min. Order Qty: 25
  • Qty. Interval: 25
  • Register to see Availability

CPC Non-Valved Coupling Body, Sanitary Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, 60 psi, Polysulfone, Amber Tint, Dimensions: 1.4 in L x 0.98 in H, -40 to 300 deg F

Fitting Type      :      Coupling Body
Pressure Rating      :      60 psi
Material      :      Polysulfone
Color      :      Amber Tint
Dimensions      :      1.4 in L x 0.98 in H
Temperature Rating      :      -40 to 300 deg F
Series      :      Sanitary
Connection 1      :      3/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/4 in

Sanitary couplings attach directly to 3/4 in sanitary terminations to provide greater flexibility for integrating components into single-use or hybrid (single-use to stainless) process systems. Standard bag systems with quick couplings can be easily connected to equipment with sanitary terminations, while single-use cartridge filters can be converted to incorporate quick couplings for greater system modularity.

  • Integral coupling adaptor
  • ADCF-free materials
