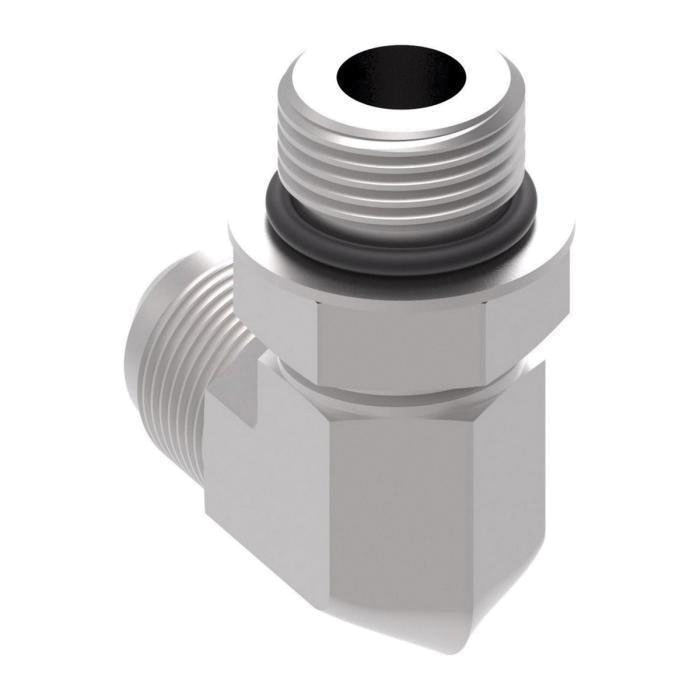

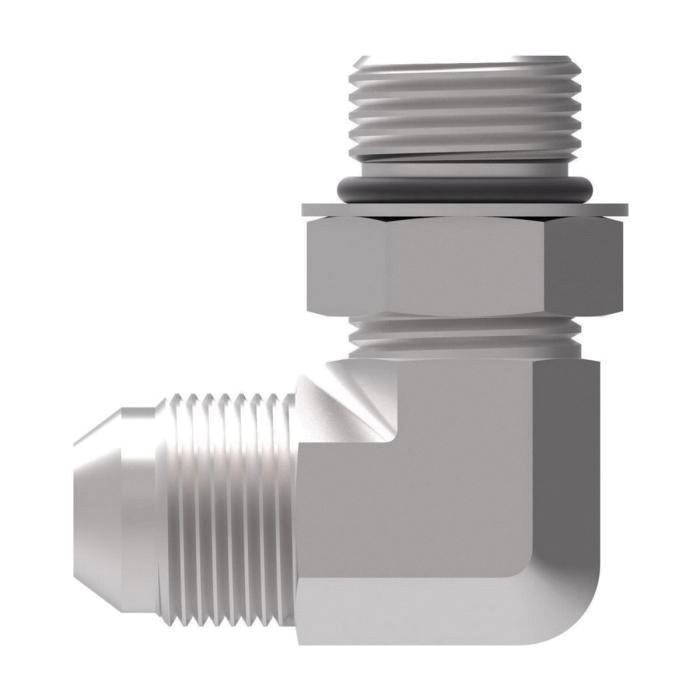

Aeroquip® by Danfoss 2062-5-4S
Aeroquip® by Danfoss 2062 Series 2062-5-4S 90 deg Elbow, 5/16 in x 1/4 in, Male SAE ORB x Male SAE 37 deg Flare Tube
- Manufacturers: Danfoss
- Brand Name: Aeroquip® by Danfoss
- Tipco Part No: AER 2062-5-4S
- MPN: 2062-5-4S
- UPC: 678146051059
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Aeroquip® by Danfoss 90 deg Elbow, 2062 Series, Connection Size 1: 5/16 in, Connection Size 2: 1/4 in, Gender 1: Male, Gender 2: Male, Thread Size 1: 1/2-20, Thread Size 2: 7/16-20, Dura-Kote, Dimension Standards: SAE 070220|SAE J1926|SAE J514, 90 deg Elbow Fitting, Steel, 4500 psi, -65 to 400 deg F, Connection Type 1: Male SAE ORB, Connection Type 2: Male SAE 37 deg Flare Tube
| Series | : | 2062 Series |
| Connection Size 1 | : | 5/16 in |
| Connection Size 2 | : | 1/4 in |
| Gender 1 | : | Male |
| Gender 2 | : | Male |
| Thread Size 1 | : | 1/2-20 |
| Thread Size 2 | : | 7/16-20 |
| Finish | : | Dura-Kote |
| Dimension Standards | : | SAE 070220|SAE J1926|SAE J514 |
| Fitting Type | : | 90 deg Elbow |
| Material | : | Steel |
| Pressure Rating | : | 4500 psi |
| Temperature Rating | : | -65 to 400 deg F |
| Connection Type 1 | : | Male SAE ORB |
| Connection Type 2 | : | Male SAE 37 deg Flare Tube |
- Dura-Kote plating for superior corrosion resistance, Design flexibility with hundreds of styles to choose from, Higher operating pressures above SAE standards
