Aeroquip® by Danfoss 2215-16-8S
Send Print
  1. pin-int

Aeroquip® by Danfoss 2215-16-8S

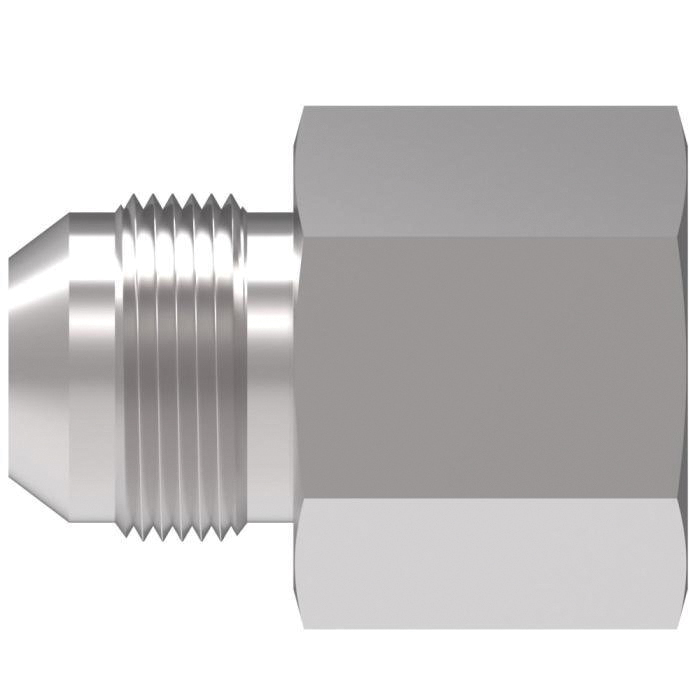

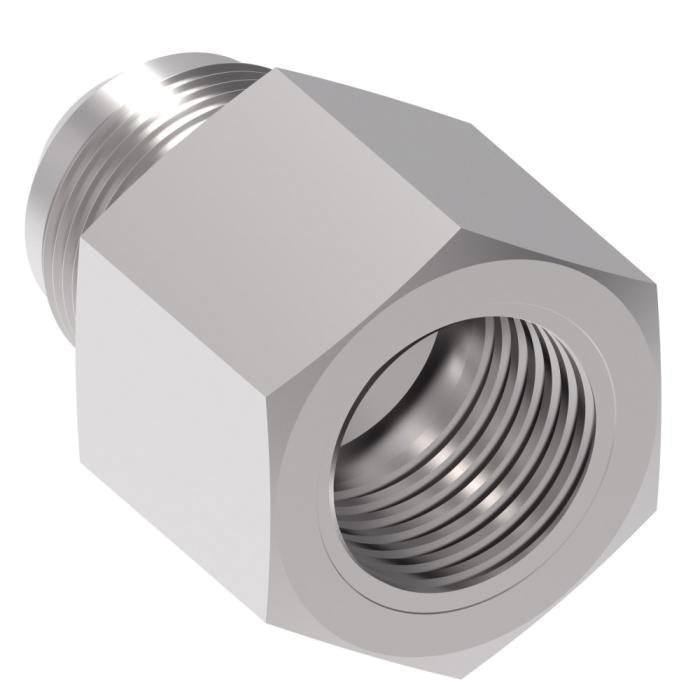

Aeroquip® by Danfoss 2215 Series 2215-16-8S Straight Adapter, 1/2 in x 1/2 in, Male SAE 37 deg JIC Flare, Steel

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip® by Danfoss
  • Tipco Part No: AER 2215-16-8S
  • MPN: 2215-16-8S
  • UPC: 678146187857
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® by Danfoss Straight Adapter, 2215 Series, Connection Size 1: 1/2 in, Connection Size 2: 1/2 in, Gender 1: Male, Gender 2: Female, Thread Size 1: 1-5/16-12, Thread Size 2: 3/4-16, Dura-Kote, Adapter Fitting, 1-1/2 in Hex, Steel, -40 to 250 deg F, Connection Type 1: Male SAE 37 deg JIC Flare, Connection Type 2: Female SAE 37 deg JIC Flare

Series      :      2215 Series
Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Female
Thread Size 1      :      1-5/16-12
Thread Size 2      :      3/4-16
Finish      :      Dura-Kote
Fitting Type      :      Adapter
Hex Size      :      1-1/2 in
Material      :      Steel
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      Male SAE 37 deg JIC Flare
Connection Type 2      :      Female SAE 37 deg JIC Flare
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Aeroquip_by_Danfoss_FF5540_12_16S_Catalog.pdf
