CPC® BLQ2D3004

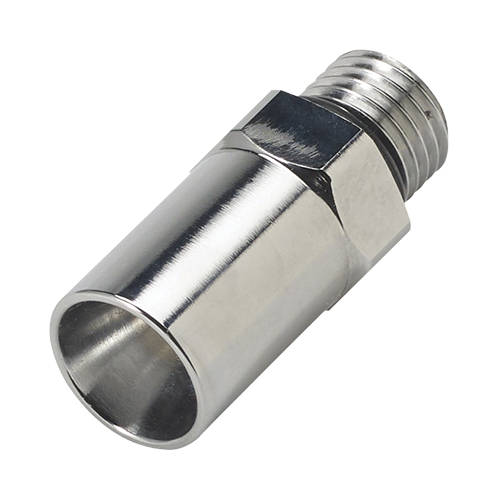

CPC® Everis® BLQ2D3004 Valved Coupling Body, 1/8 in Quick Disconnect x 1/4 in SAE Threaded, Brass, Chrome-Plated

  • Manufacturers: Dover Corporation
  • Brand Name: CPC®
  • Tipco Part No: CPC BLQ2D3004
  • MPN: BLQ2D3004
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Everis® BLQ2 Series quick disconnect couplings provide ultra-reliable, dripless connections and disconnections that protect valuable electronics. Designed specifically for rack mounted liquid cooling applications, the Everis BLQ2 utilizes patented technology that eliminates drips and is able to withstand long-term connection.

CPC® Valved Coupling Body, BLQ2 Series, 1/8 x 1/4 in Connection, Quick Disconnect x SAE Threaded, Material Construction: Brass, Chrome-Plated, Metallic, 9/16 in Hex, 0.62 in Dia x 1.31 in L, 200 psi Maximum Operating Pressure, 0 to 240 deg F Operating Temperature, 0.025 gpm Flow Rate, 0.4 Cv Flow Coefficient, Thread Mount, EPDM Seal, Stainless Steel Valve Spring

  • Non-spill valve
  • Redundant multi-lobed seals
  • Innovative valve design
  • Ruggedness
  • Axial engagement tolerance
  • Single-piece options for body and insert
  • pdfCatalog https://assets.unilogcorp.com/526/ITEM/DOC/CPC_LQ2D1704LRED_Catalog.pdf
