CPC® BLQ4D30006

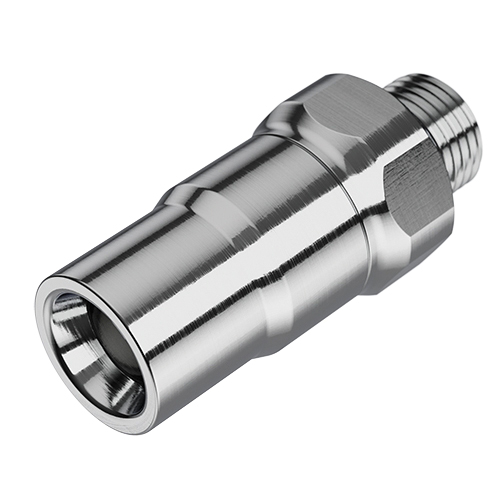

CPC® Everis® BLQ4D30006 Valved Coupling Body, 1/4 in Quick Disconnect x 3/8 in SAE Threaded, Brass, Chrome-Plated

  • Manufacturers: Dover Corporation
  • Brand Name: CPC®
  • Tipco Part No: CPC BLQ4D30006
  • MPN: BLQ4D30006
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Everis® BLQ4 Series quick disconnect couplings provide ultra-reliable, dripless connections and disconnections that protect valuable electronics. Designed specifically for rack mounted liquid cooling applications, Everis BLQ4 utilizes patented technology that eliminates drips and is designed for long-term connected use.

CPC® Valved Coupling Body, BLQ4 Series, 1/4 x 3/8 in Connection, Quick Disconnect x SAE Threaded, Material Construction: Brass, Chrome-Plated, Metallic, 22 mm Hex, 0.93 in Dia x 2.05 in L, 120 psi Maximum Operating Pressure, 0 to 240 deg F Operating Temperature, 3 gpm Flow Rate, 1.4 Cv Flow Coefficient, Thread Mount, EPDM Seal, Stainless Steel Valve Spring

  • Non-spill valves
  • Redundant seals
  • Innovative valve design
  • Rugged construction
  • Axial engagement tolerance
  • Single-piece options for body and insert
