Everis® LQ2 Series quick disconnect couplings with 1/8" flow are designed for liquid cooling applications. With a small form factor for tight spaces, Everis LQ2 connectors offer a high-flow capacity to optimize system performance. The couplings' patented design offers reliable long-term connections and provides drip-free connections and disconnections to protect sensitive equipment. EPDM, FVMQ and FKM seals are standard options for compatibility with water, glycol and dielectric coolants. For other material and termination options, see your regional CPC sales representative.

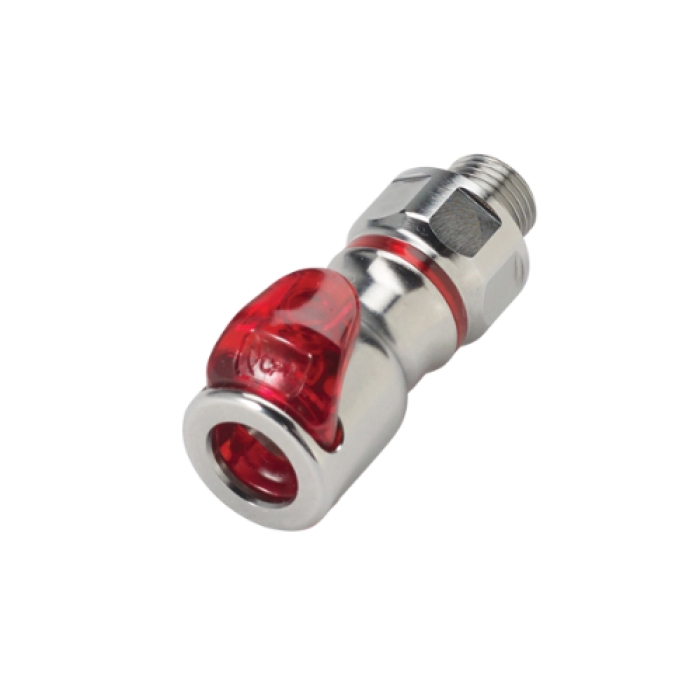

CPC® Valved Coupling Body, LQ2 Series, 1/8 x G1/8 in Connection, Quick Disconnect x BSPP, Material Construction: Brass, Chrome-Plated, Metallic/Warm Red, 15 mm Hex, 0.82 in Dia x 1.67 in L, 200 psi Maximum Operating Pressure, 0 to 240 deg F Operating Temperature, 0.25 gpm Flow Rate, 0.37 Cv Flow Coefficient, Thread Mount, EPDM Seal, Stainless Steel Valve Spring
- Non-spill valve
- Redundant multi-lobed seals
- High flow capacity with low pressure drop
- EPDM, FKM or FVMQ seals
- Ergonomic body and latch design
- Audible click
- Color coding
- Low profile
- Swivel connection
- Single-piece options for insert
