Everis® LQ4S Series quick disconnect couplings Offering a notable 1/4" flow relative to external dimensions, the couplings' patented design offers reliable long-term connections and dry break to protect sensitive equipment. EPDM seals are standard. For other seal options or terminations, contact CPC.

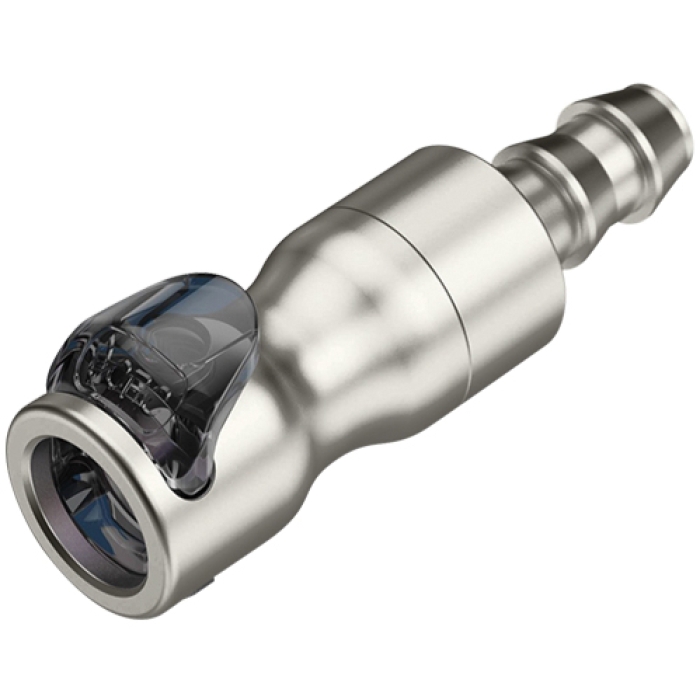

CPC® Valved Coupling Body, LQ4S Series, 1/4 x 3/8 in Connection, Quick Disconnect x Lock-On Hose Barb, Material Construction: 303 Stainless Steel, Passivated, Metallic, 0.97 in Dia x 2.71 in L, 120 psi Maximum Operating Pressure, 0 to 240 deg F Operating Temperature, 3 gpm Flow Rate, 1.4 Cv Flow Coefficient, In-Line Mount, EPDM Seal, Stainless Steel Valve Spring
- Dry break, non-spill valves
- Redundant multi-lobed seals
- High flow capacity with low pressure drop
- EPDM seals
- Ergonomic body and latch design
- Color coding
- Low profile
- Barbed and threaded terminations
Specification Sheet
