Everis® LQ6 Series quick disconnect couplings feature 3/8" flow for liquid cooling of electronics applications. Everis LQ6 connectors offer a high-flow capacity to optimize liquid cooling system performance. The couplings' patented design offers reliable long-term connections and the non-spill valves provide drip-free connections and disconnections to protect sensitive equipment. FKM, FVMQ and EPDM seals are standard options for compatibility with dielectric or glycol/water coolants. For other material and termination options see your regional CPC sales representative.

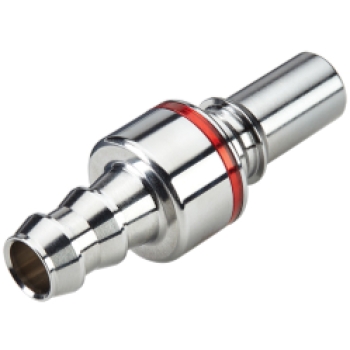

CPC® Valved Coupling Insert, LQ6 Series, 3/8 x 1/2 in Connection, Quick Disconnect x Lock-On Hose Barb, Material Construction: Brass, Chrome-Plated, Metallic/Warm Red, 1 in Dia x 2.91 in L, 120 psi Maximum Operating Pressure, 0 to 240 deg F Operating Temperature, 5 gpm Flow Rate, 2.2 Cv Flow Coefficient, In-Line Mount, EPDM Seal, 302 Stainless Steel Valve Spring
- Non-spill valve
- Redundant multi-lobed seals
- High flow capacity with low pressure drop
- EPDM, FKM or FVMQ seals
- Ergonomic body and latch design
- Audible click
- Color coding
- Low profile
- Swivel connection
- Single-piece options for insert
