CPC® 4238300

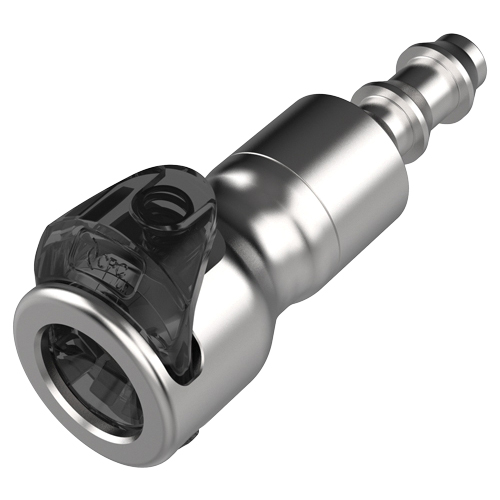

CPC® Everis® UQD02 Series 4238300 Valved Coupling Body, 1/8 in Quick Disconnect x 1/4 in Hose Barbed, Stainless Steel

  • Manufacturers: Dover Corporation
  • Brand Name: CPC®
  • Tipco Part No: CPC 4238300
  • MPN: 4238300
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Everis® UQD02 Series quick disconnect couplings with 1/8" flow are designed for liquid cooling applications. These quick disconnects offer ease of use, outstanding reliability, high performance and resistance to corrosion. The Everis UQD02 quick disconnect is a liquid cooling coupling designed to the OCP specification for server applications.

CPC® Valved Coupling Body, UQD02 Series, 1/8 x 1/4 in Connection, Quick Disconnect x Hose Barbed, Material Construction: 303 Stainless Steel, Passivated, Metallic/Black, 0.88 in Dia x 2.15 in L, 120 psi Maximum Operating Pressure, 36 to 167 deg F Operating Temperature, 0.37 Flow Coefficient, In-Line Mount, EPDM Seal, Stainless Steel Valve Spring

  • Non-spill valve design
  • Redundant seals in circular state when connected
  • High flow capacity with low pressure drop
  • Ergonomic body and latch design
  • Audible click
  • Barbed and threaded terminations
  • Intel-inspired design
  • Designed and manufactured for scale
  • pdfSpecification Sheet https://assets.unilogcorp.com/526/ITEM/DOC/CPC_4238300_Specification_Sheet.pdf
