CPC® 4211201

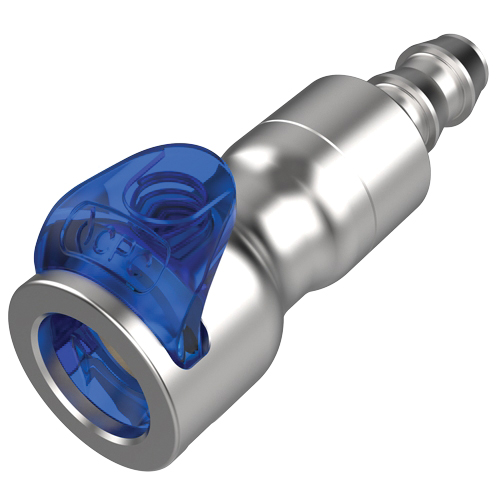

CPC® Everis® UQD04 Series 4211201 Valved Coupling Body, 1/4 in Quick Disconnect x 3/8 in Hose Barbed, Stainless Steel

  • Manufacturers: Dover Corporation
  • Brand Name: CPC®
  • Tipco Part No: CPC 4211201
  • MPN: 4211201
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Everis® UQD04 Series quick disconnect couplings with 1/4" flow are designed for large scale liquid cooling. These quick disconnects offer ease of use, outstanding reliability, high performance and resistance to corrosion. The Everis UQD04 quick disconnect is a liquid cooling coupling designed to the OCP specification for server applications.

CPC® Valved Coupling Body, UQD04 Series, 1/4 x 3/8 in Connection, Quick Disconnect x Hose Barbed, Material Construction: 303 Stainless Steel, Passivated, Metallic/Blue, 1.18 in Dia x 2.81 in L, 120 psi Maximum Operating Pressure, 36 to 167 deg F Operating Temperature, 1.3 Cv Flow Coefficient, In-Line Mount, EPDM Seal, Stainless Steel Valve Spring

  • Non-spill valve design
  • Redundant seals in circular state when connected
  • High flow capacity with low pressure drop
  • Ergonomic body and latch design
  • Audible click
  • Barbed and threaded terminations
  • Intel-inspired design
  • Designed and manufactured for scale
  • pdfSpecification Sheet https://assets.unilogcorp.com/526/ITEM/DOC/CPC_4211200_Specification_Sheet.pdf
